The Right Stuff Disc /Disc, Black Booster & Master Cylinder Combination Kit - (B85315672)

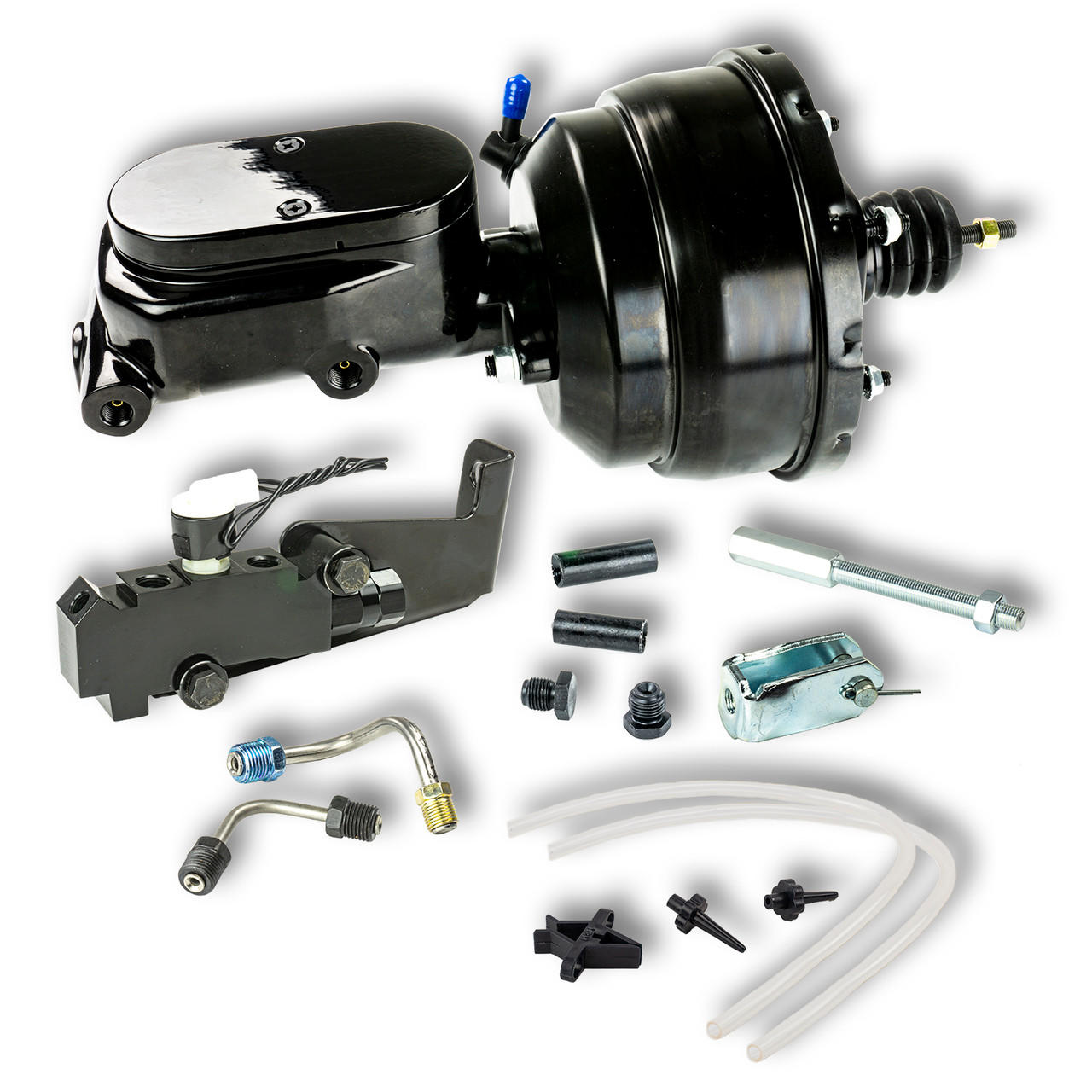

This is the upper assembly for a disc/disc car: booster, master and valve already married together and plumbed, so the firewall side of a 4-wheel disc build goes on as one unit. The The Right Stuff combination kit pairs a black 8" dual-diaphragm vacuum booster with a 1-1/8" bore aluminum master cylinder.

Why It's Worth It

• Dual-diaphragm 8" booster for strong assist in a compact package
• 1-1/8" bore, 2-port (dual-reservoir) aluminum master cylinder with cap
• Valve and lines included, set up for disc/disc
• Bracket, pedal rod extension and mounting hardware included

What's Included

• Black vacuum booster and master cylinder
• Valve and lines
• Bracket, brake pedal rod extension, mounting hardware and bleeder hoses

Before You Order

• Confirm the booster bolt pattern and bracket match your firewall
• Disc/disc only; not for a drum rear
• Vacuum boosters need healthy engine vacuum; big cams may call for a vacuum reserve or hydro-boost

Specifications:

Bleeder Hoses Included:	Yes
Booster Diaphragm Type:	Dual
Booster Housing Diameter:	8
Booster Type:	Vacuum
Bracket Included:	Yes
Brake Pedal Rod Extension Included:	Yes
California Proposition 65:	Yes
Master Cylinder Bore Size:	1.125
Master Cylinder Cap Included:	Yes
Master Cylinder Material:	Aluminium
Master Cylinder Port Quantity:	2
Mounting Hardware Included:	Yes
Part Type:	Brake Booster with Master Cylinder

Warranty:

The Right Stuff products carry a limited lifetime warranty to be free of defects in material and workmanship. The warranty is void if the product has been altered, improperly installed or used for purposes other than originally intended.
