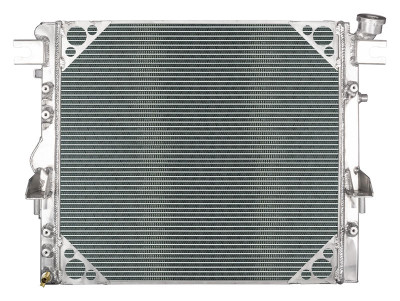

07-18 Jeep Wrangler JK w/Hemi or LS Swap Extruded Core Aluminum Radiator
Designed to be used with an external trans cooler
2007-2018 Jeep Wrangler JK Hemi or LS Swap Aluminum Performance Radiator with extruded core for maximum durability. All 07-18 Wranglers use external transmission coolers so this Radiator fits both manual and automatic Jeeps
This radiator uses a custom to Cold Case 41mm extruded core with four cooling flutes for maximum strength and coolant flow. Unlike intercooler cores the Cold Case extruded tube mirrors those of a standard radiator giving them an aero advantage, while raising the burst strength to 100psi and adding much needed torsional rigidity to handle extreme off roading demands.
Tube surface area and fin per inch count closely resemble our standard cores so cooling efficiency remains very high and much improved over stock replacement radiators.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
100 percent TIG welded
All Aluminum
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
Direct fitment for 07-18 Jeep Wrangler JK
XD 41mm extruded core with 4 cooling flutes
Fully furnace braised
Radiator Specs
Core Height: 20.4 inch
Core Width: 22 inch
Overall Height: 21.65 inch
Overall Width: 28.75 inch
Overall Thickness: 2.5 inch
Upper Hose 1.5 inch
Lower Hose 1.5 inch
Specifications:
Engine: |
LS Swap |
Finish: |
Polished |
Material: |
Aluminum |
Part Type: |
Radiator |
