DescriptionUpright Headers; Fits w/2.8L/3.1L/3.4L GM V6 Engines; 1.5 in. Primary Tubes; 2.5 in. Collector; 10 in. Long; D-Port;

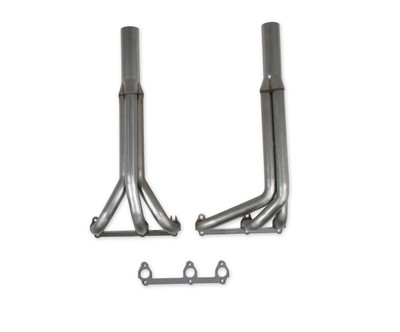

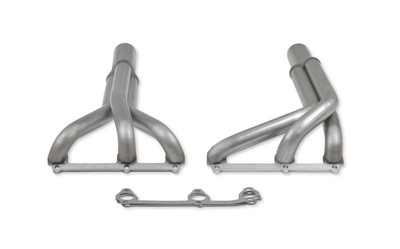

These Flowtech upright derby style headers fit the 2.8L, 3.1L and 3.4L GM V6 engines with both round port or D-port style exhaust ports. 1-1/2 in. and 1-5/8 in. mandrel bent primary tubes provide consistent tubing diameters for smooth flow of the exhaust pulses and increase the cylinder scavenging of the exhaust to improve engine breathing. The headers are constructed from heavy duty 16-gauge 409 stainless steel tubing for increased strength and durability. These headers use a 10 in. long, 2.5 in. collector with 20 in. long primary tubes. The 3/8 in. thick header flange provides a leak-free seal and maximizes strength.
Features & Benefits
- Better Exhaust Pulse Flow And Improved Performance
- Increased Exhaust Flow And Improved Throttle Response
- Heavy Duty 16-Gauge 409 Stainless Steel For Strength/Durability

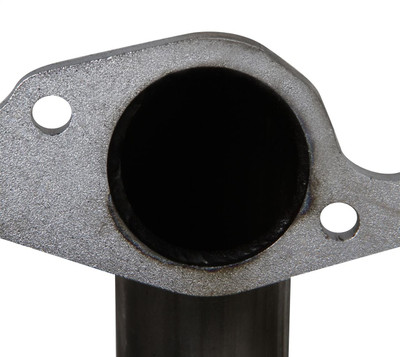

- 3/8 in. Thick Header Flange For A Leakfree Seal
- Header Gaskets Included
Specifications:
Application: |
Race Car |
Collector Tube Size: |
2.500 in. |
Flange Length: |
0.375 in. |
Part Type: |
Exhaust Header |
Port Shape: |
D-Port |
Tube Diameter: |
1.500 in. |
