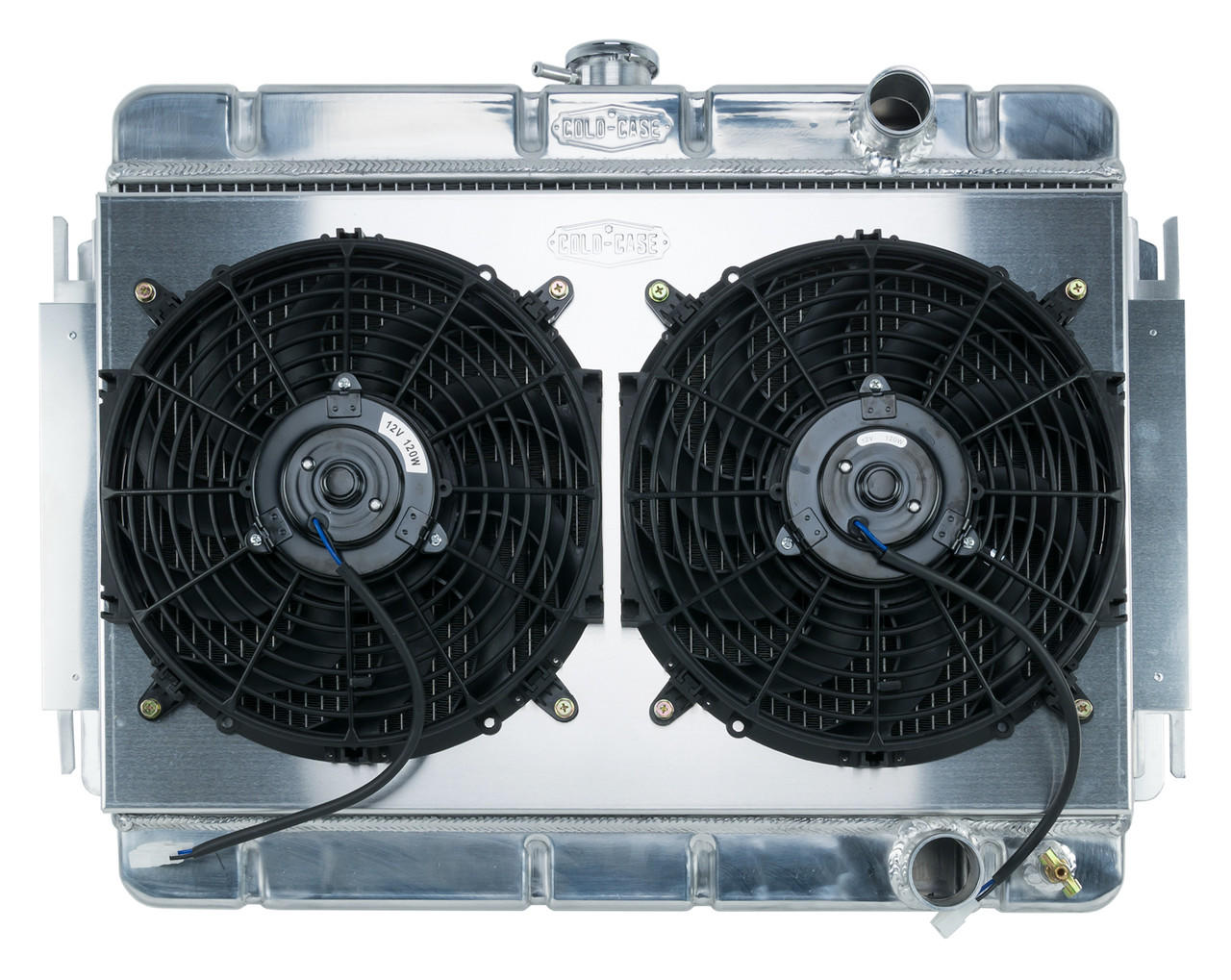

Description64-65 Chevelle/El Camino w/Manual Trans Aluminum Radiator & Dual 12 Inch Fan Kit
64-65 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit MT. MT Transmission. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/standard trans
- Direct fitment for 64-65 Chevelle/El Camino
Radiator Specs
- Core Height 15.12 inch
- Core Width 24.72 inch
- Overall Height 20.125 inch
- Overall Width 27.75 inch
- Overall Thickness 6 inch
- Upper Hose 1.57 inch
- Lower Hose 1.77 inch
- Tubes (2) 1.25 inch Tubes
Specifications:
AMP DRAW: |
6.85 Avg |
Blade Material: |
Curved Nylon |
Core Height: |
15.12 Inch |
Core Width: |
24.72 Inch |
Fan Diameter: |
12 Inch |
Fan Quantity: |
2 |
Finish: |
Polished |
Material: |
Aluminum |
Max Fan CFM: |
3200 CFM |
Overall Height: |
20.125 Inch |
Overall Width: |
27.75 Inch |
Part Type: |
Radiator Kit |
Thickness: |
6.75 Inch |
Transmission Type: |
Manual |
