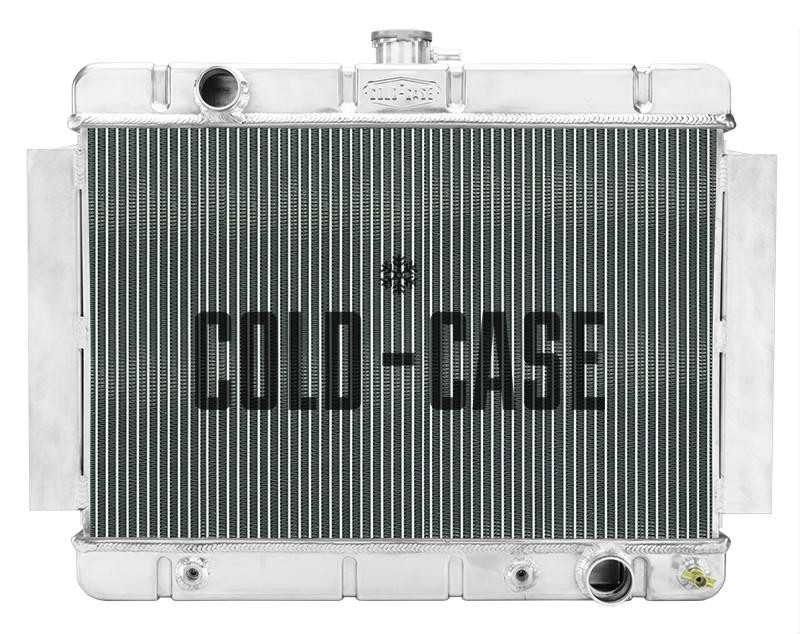

Description66-67 Chevelle / El Camino w/o AC Aluminum Performance Radiator
1966-1967 Chevrolet Chevelle/El Camino w/o AC Aluminum Performance Radiator. This is the configuration with a center filler and upper inlet offset on driver side. 23 inch wide core without AC applications but will fit all V8.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/standard trans
- Direct fitment for 66-67 Chevelle/El Camino
Radiator Specs
- Core Height 15.5 Inch
- Core Width 24 Inch
- Overall Height 21.25 Inch to cap
- Overall Width 28.5 brackets Inch
- Overall Thickness 3 Inch
- Tubes (2) 1.25 Inch Tubes
- Upper Hose 1.5 Inch
- Lower Hose 1.75 Inch
Specifications:
Part Type: |
Radiator |
