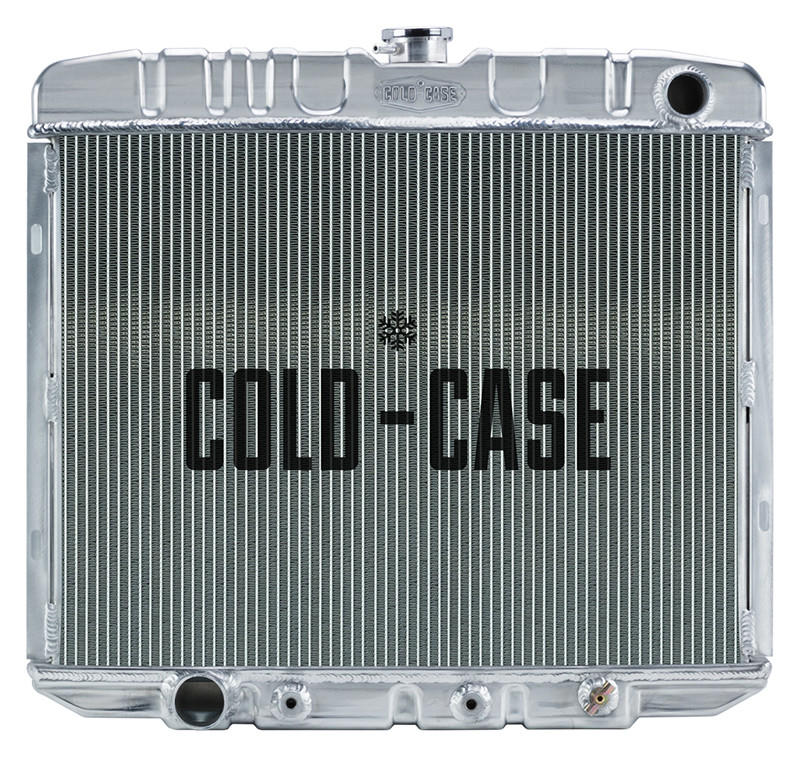

Description66-67 Fairlane w/Big Block Ford & Auto Trans, Aluminum Performance Radiator
1966-1967 Ford Fairlane Big Block Aluminum Performance Radiator. AT Cars. This radiator is actually correct for only the 1967. 1966 owners must obtain a 67 top bracket for proper fitment.
Also, the lower rubber insulators may need some trimming for proper fitment. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 66-67 Fairlane w/ Big Block
Radiator Specs
- Core Height 16 inch
- Core Width 24 inch
- Overall Height 21.5 inch
- Overall Width 25.5 inch
- Overall Thickness 3 inch
- Upper Hose 1.5 inch
- Lower Hose 1.75 inch
- Tubes (2) 1 inch Tubes
Specifications:
Core Height: |
17.25 Inch |
Core Width: |
22.75 Inch |
Engine: |
Ford Big Block |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
22.65 Inch |
Overall Width: |
24.45 Inch |
Part Type: |
Radiator |
Thickness: |
3.0 Inch |
Transmission Type: |
Automatic |
