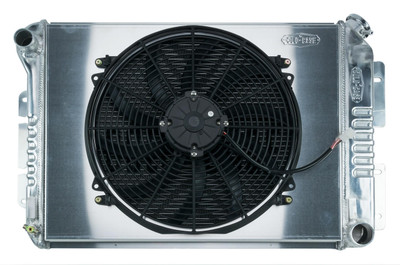

Description67-69 Camaro/Firebird w/BB Chevy/Manual Trans Aluminum Radiator
1967-1969 GM F-Body Aluminum Performance Radiator. MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
67-69 Firebird ALL
67-69 Camaro w/ Big Block
- Can be used on SB cars. Will need to swap out fan shroud.
68-71 Nova BB w/ bracket mount
Details:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Manual trans
- Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
Radiator Specs
- Core Height:16.85 inch
- Core Width: 23 inch
- Overall Height: 18.5 inch
- Overall Width:27.5 inch
- Overall Thickness: 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
Specifications:
Color: |
Silver |
Core Height: |
16.85 Inch |
Core Width: |
23.0 Inch |
Engine: |
Chevy Big Block |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
18.5 Inch |
Overall Width: |
27.50 Inch |
Part Type: |
Radiator |
Thickness: |
3.0 Inch |
Transmission Type: |
Manual |
