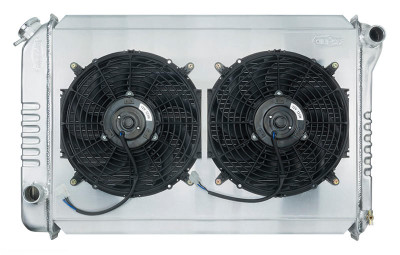

Cold Case Radiators 67-70 Mustang w/Small Block Auto 24" Aluminum Performance Radiator & 12" Fan Kit - (CR-FOM587AK)

Description

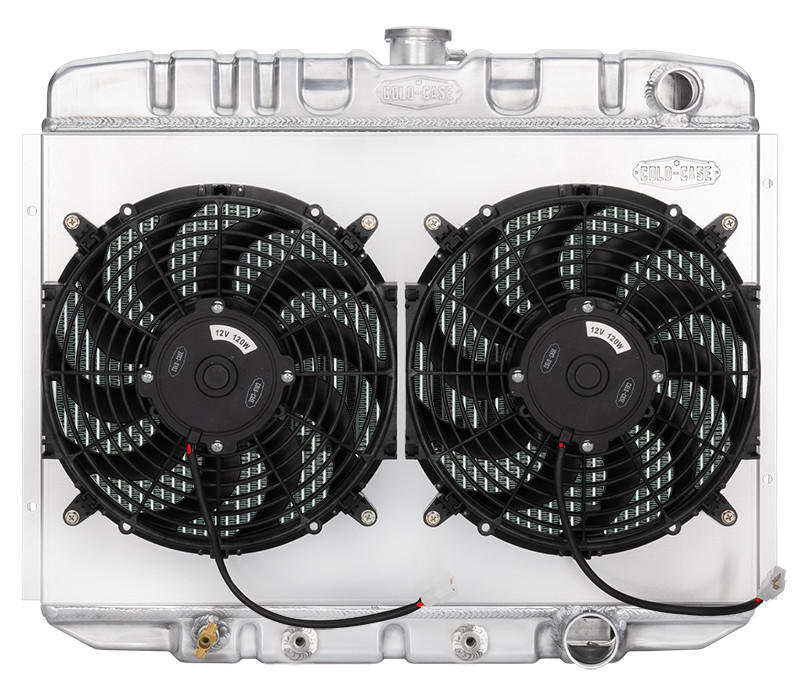

67-70 Mustang w/Small Block Auto 24" Aluminum Performance Radiator & 12" Fan Kit

67-70 Mustang SB 24 Inch Aluminum Performance Radiator And Dual 12 Inch Fan Kit AT. AC radiator with RH inlet/outlet. Owners with 20 inch radiators wanting to upgrade radiator performance can use this 24 inch model by purchasing and installing a pair of lower radiator brackets, rubber insulators and an upper radiator bracket and rubber insulator from your favorite Mustang restoration supplier.

Also, you should remove the support shields found on the LH and RH of the support.

This will increase the opening in the support to take advantage of the larger radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Direct fitment for 67-70 Mustang
• Old Part Number: RPE587K

Radiator Specs

• Core Height 16 inch
• Core Width 24 inch
• Overall Height 21.5 inch
• Overall Width 25.5 inch
• Overall Thickness 6 inch
• Upper Hose 1.3 inch
• Lower Hose 1 inch
• Tubes (2)1 inch Tubes

Specifications:

AMP DRAW:	6.85 Avg
Blade Material:	Curved Nylon
Core Height:	16 Inch
Core Width:	24 Inch
Engine:	Ford Small Block
Fan Diameter:	12 Inch
Fan Quantity:	2
Finish:	Polished
Material:	Aluminum
Max Fan CFM:	2800 CFM
Overall Height:	21.5 Inch
Overall Width:	25.5 Inch
Part Type:	Radiator Kit
Thickness:	6.75 Inch
Transmission Type:	Automatic
