Description68-74 AMC Javelin AMX w/Automatic Transmission, Aluminum Radiator

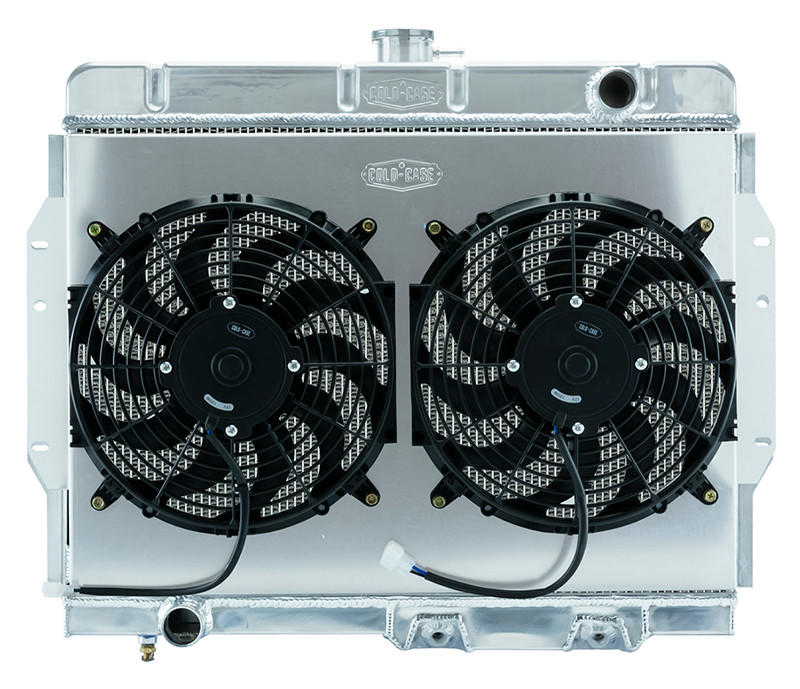

1968-1970 AMC Javelin Aluminum Performance Radiator and Dual 12 inch Fans Kit. AT/MT Cars.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
68-70 AMC Javelin
May fit some 71-74 cars as well.
Details:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Auto/Manual transmission
Radiator Specs
- Core Height: 15.12 inch
- Core Width: 17 inch
- Overall Height: 22.5 inch
- Overall Width: 26.35 inch
- Overall Thickness:6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.50 inch
Specifications:
AMP DRAW: |
6.85 Avg |
Core Height: |
15.12 Inches |
Core Width: |
17 Inches |
Fan Diameter: |
12 Inch |
Fan Quantity: |
2 |
Finish: |
Polished |
Material: |
Aluminum |
Max Fan CFM: |
3200 CFM |
Overall Height: |
22.5 Inch |
Overall Width: |
26.26 Inch |
Part Type: |
Radiator |
Thickness: |
6.75 Inch |
Transmission Type: |
Automatic |
