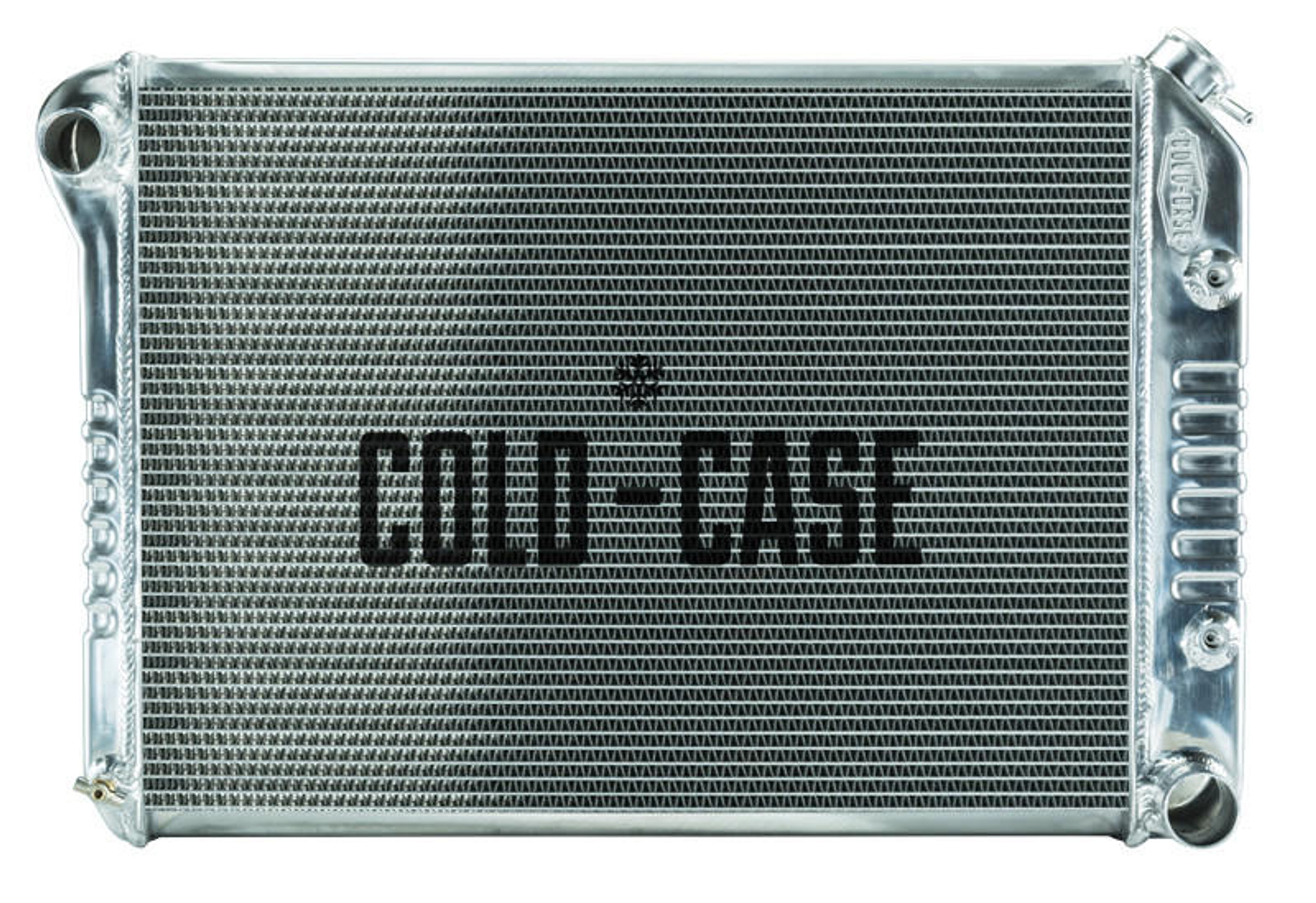

Description68-79 Nova w/Big Block Chevy & Auto Trans, Aluminum Performance Radiator
1968-1979 Chevrolet Nova Aluminum Performance Radiator. AT Transmission. Big Block version. Comes without brackets. For bracket version, CR-CHC11A.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic transmission
- Direct fitment for 68-79 Nova w/ Big Block
Radiator Specs
- Core Height 16.85 inch
- Core Width 23 inch
- Overall Height 19 inch
- Overall Width 28.35 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
Specifications:
Color: |
Silver |
Core Height: |
16.85 Inch |
Core Width: |
23 Inch |
Engine: |
Chevy Big Block |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
19 Inch |
Overall Width: |
28.34 Inch |
Part Type: |
Radiator |
Thickness: |
3.0 Inch |
Transmission Type: |
Automatic |
