*This product is eligible for a $50 Rebate through the Cold Case Radiators website after purchase. Please see First Place Homepage banner for details. *

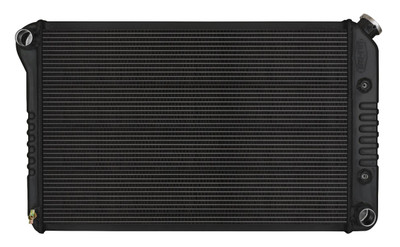

Description78-88 GM G-Body w/Auto (exc. Buick GN) Aluminum Radiator & 12 Inch Dual Fan Kit
1978-1988 GM G-Body except Grand National Aluminum Performance Radiator and 12 Inch dual fan kit exc GN. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual and auto trans
- Direct fitment for 78-88 G-Body
- Old Part Number: RPE544ATFK
Radiator Specs
- Core Height 18.5 inch
- Core Width 26.5 inch
- Overall Height 18.5 inch
- Overall Width 31.5 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
Specifications:
AMP DRAW: |
6.85 Avg |
Blade Material: |
Curved Nylon |
Core Height: |
18.5 Inch |
Core Width: |
26.5 Inch |
Fan Diameter: |
12 Inch |
Fan Quantity: |
2 |
Finish: |
Polished |
Material: |
Aluminum |
Max Fan CFM: |
3200 CFM |
Overall Height: |
18.5 Inch |
Overall Width: |
31.5 Inch |
Part Type: |
Radiator Kit |
Thickness: |
6.75 Inch |
Transmission Type: |
Automatic |
