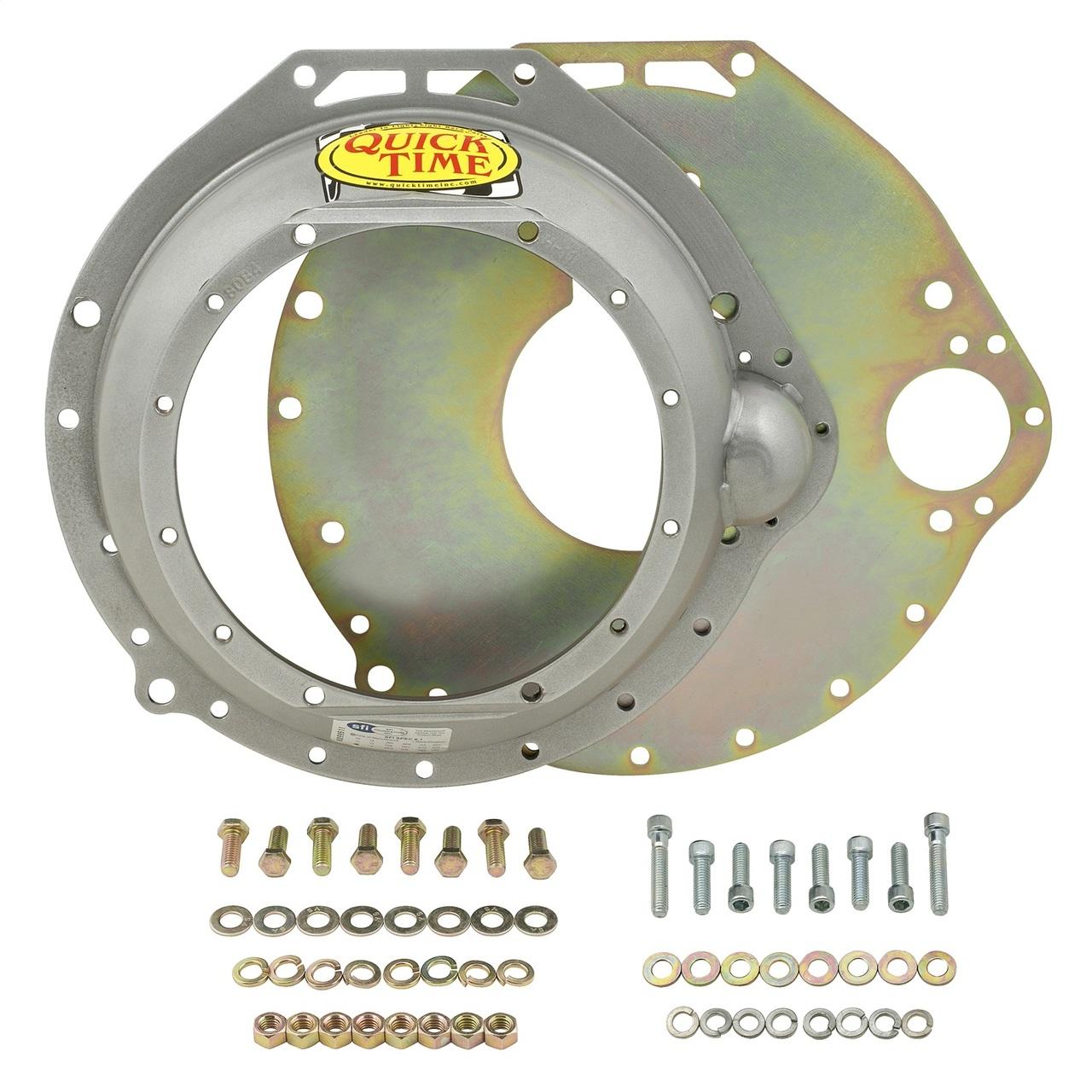

Quick Time Bellhousing for 4.6/5.0/5.4/5.8/6.2L Ford Modular Engine w/ZF Transaxle Trans - (RM-8084)

Description

QuickTime Bellhousing; Ford 4.6/5.0/5.4/5.8/6.2 Modular Engines To ZF Transaxle Trans.; 6.1 SFI Certified; 164 Tooth; 4.497 in. Height; 10.875 in. Trans Bore;

The Quick Time RM-8084 bellhousing connects Coyote 4.6L / 5.0L / 5.4L to ZF Transaxle transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features & Benefits

• Patent On 16 Points Of Bellhousing Design And Process
• High Grade Steel - Work Hardened To Over 80000 PSI Strength
• Bellhousing Cone Is Spin Formed Not Rolled Or Stamped
• Laser Cut Components Are Added To Assembly
• CNC Machined w/Extreme Precision
• Precision Mfd. Most Dimensionally Stable Bellhousing Available
• Designed To Be The Lightest/Strongest/Most Accurate Available
• Ideal For Drag/Circle Track/High Performance Street Applications
• Fits 4.6/5.0/5.4/5.8/6.2L Modular Ford Engines

Specifications:

Engine:	Ford 4.6 Modular
Item Height:	4.497 in.
Part Type:	Transmission Bell Housing
Transmission Model:	ZF Transaxle
Transmission Type:	Both
