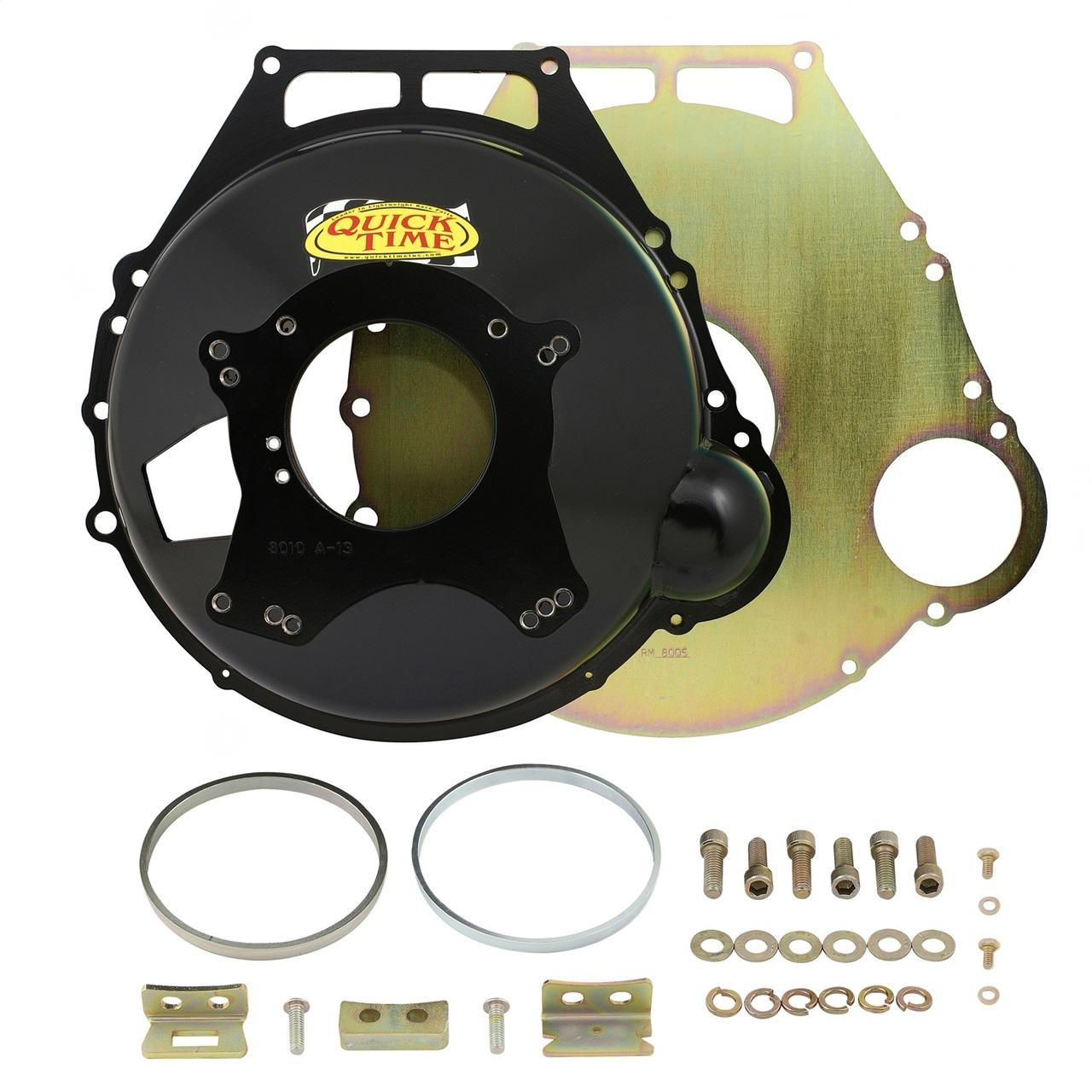

DescriptionQuickTime Bellhousing; Ford 351M/400/429/460/Big Blocks To T5 Or Tremac Trans.; Hydraulic; 176 Tooth; 7.150 in. Height; 4.85/4.91/5.12 in. Trans Bore;
This bellhousing is designed for circle track, strip or street application. Will fit Ford 351M, 400, 429 , to Ford T5 Tremec transmission, built from high grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today. It's 7.05 in deep bellhousing will clear a 176 tooth flywheel and a 12 in clutch assembly. Transmission bore is universal at 4.685 - 4.910 in and is set up for adjustable pivot. Weighs 22 pounds, block plate and grade 8 hardware included in the kit. Non S.F.I. approved. Other bellhousing applications available.
Features & Benefits
- Patent On 16 Points Of Bellhousing Design And Process
- Made From High Strength Steel
- Bellhousing Cone Is Spin Formed Not Rolled Or Stamped
- Bellhousing Depth 7.050 in.
- Set Up For Adjustable Pivot
- Designed To Be Used With A 176 Tooth Flywheel
- Non SFI Approved
- Block Plate Included
- Weighs 22 lbs.
Specifications:
Color: |
Black |
Engine: |
Ford 351M |
Finish: |
Semi-Gloss |
Item Height: |
7.150 in. |
Material: |
Steel |
Part Type: |
Transmission Bell Housing |
Transmission Model: |
T5 Mustang |
Transmission Type: |
Manual |
