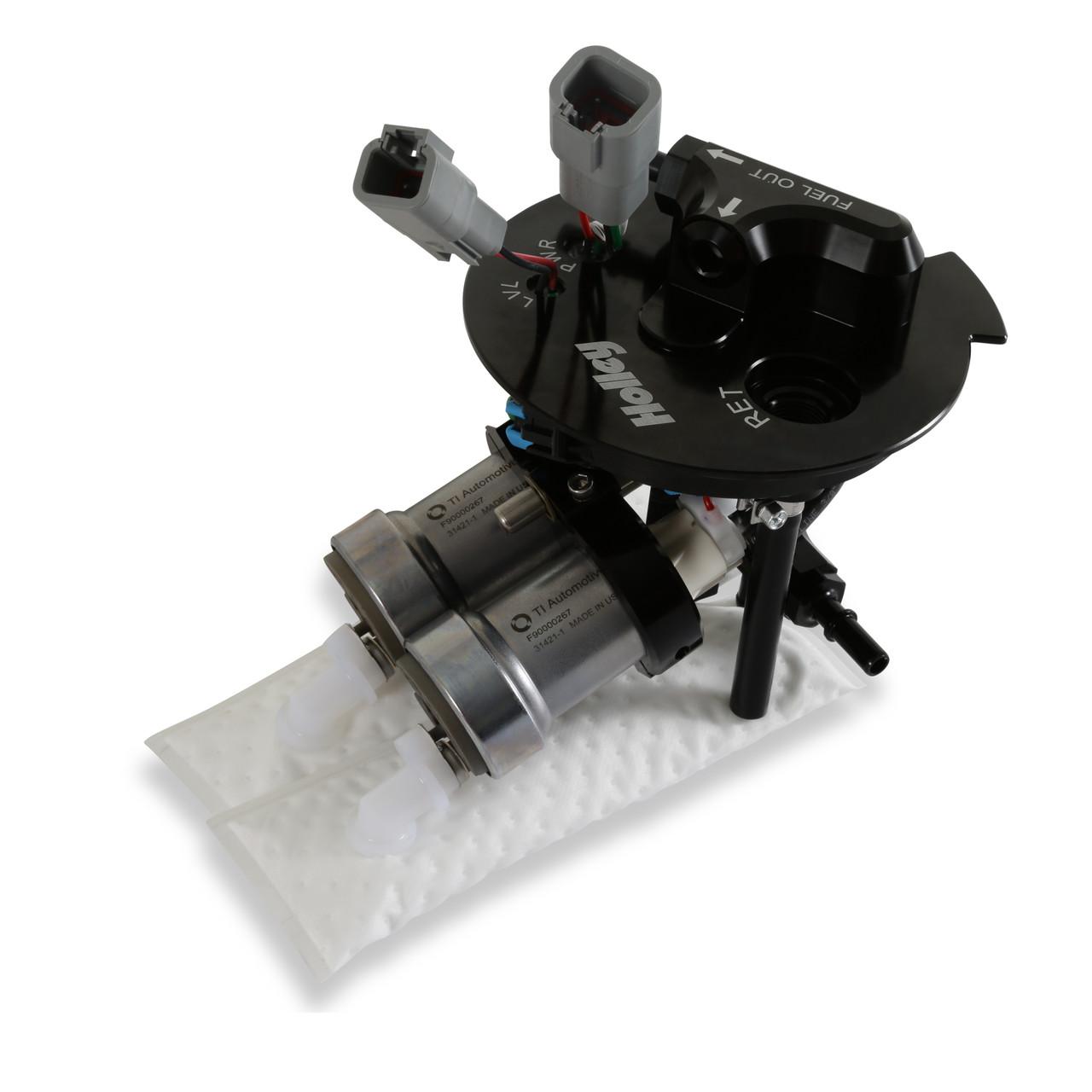

Description2010-2015 Camaro Dual 450 LPH Pump Module
The dual 340 LPH module will support up to 1400 HP while the dual 450 LPH will support up to 1750 HP.
Features & Benefits
- -8AN ORB inlets and outlets (return fitting included)
- Dual 450 (1750 hp) @ 60 psi at 13.5 volts / 16.9 amp draw
- Two HydraMats, one for each pump
- Integrated jet pump assembly allows retention of factory drivers side fuel pickup
- Have been tested to deliver stable fuel pressure down to low fuel indicator warning light
- Brand new level sensor included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module
- Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line
- Module is return style only so a regulator must be installed
- Machined, billet, anodized, laser etch components for durability and good looks
Specifications:
| Fuel Type: |
Gasoline/E85 Compatible |
| Height: |
Standard |
| Material: |
Billet Aluminum and Steel |
| Gasket Or Seal Included: |
No |
| Housing Material: |
Aluminum |
| Outlet Type: |
ORB |
| Free Flow GPH: |
240 |
| Mounting Hardware Included: |
Yes |
| Grade Type: |
Performance |
| Part Type: |
Fuel Pump Module Assembly |
| Inlet Quantity: |
One |
| Wire Quantity: |
6 |
| Resistance Ohms Empty: |
40 Ohms |
| Outlet Quantity: |
2 |
| Universal Or Specific Fit: |
Specific |
| Product Type: |
Fuel Pump Module |
| Resistance Ohms Full: |
250 Ohms |
| Voltage: |
12 2H |
Warranty:
Manufacturer's Limited 90 Day Warranty
