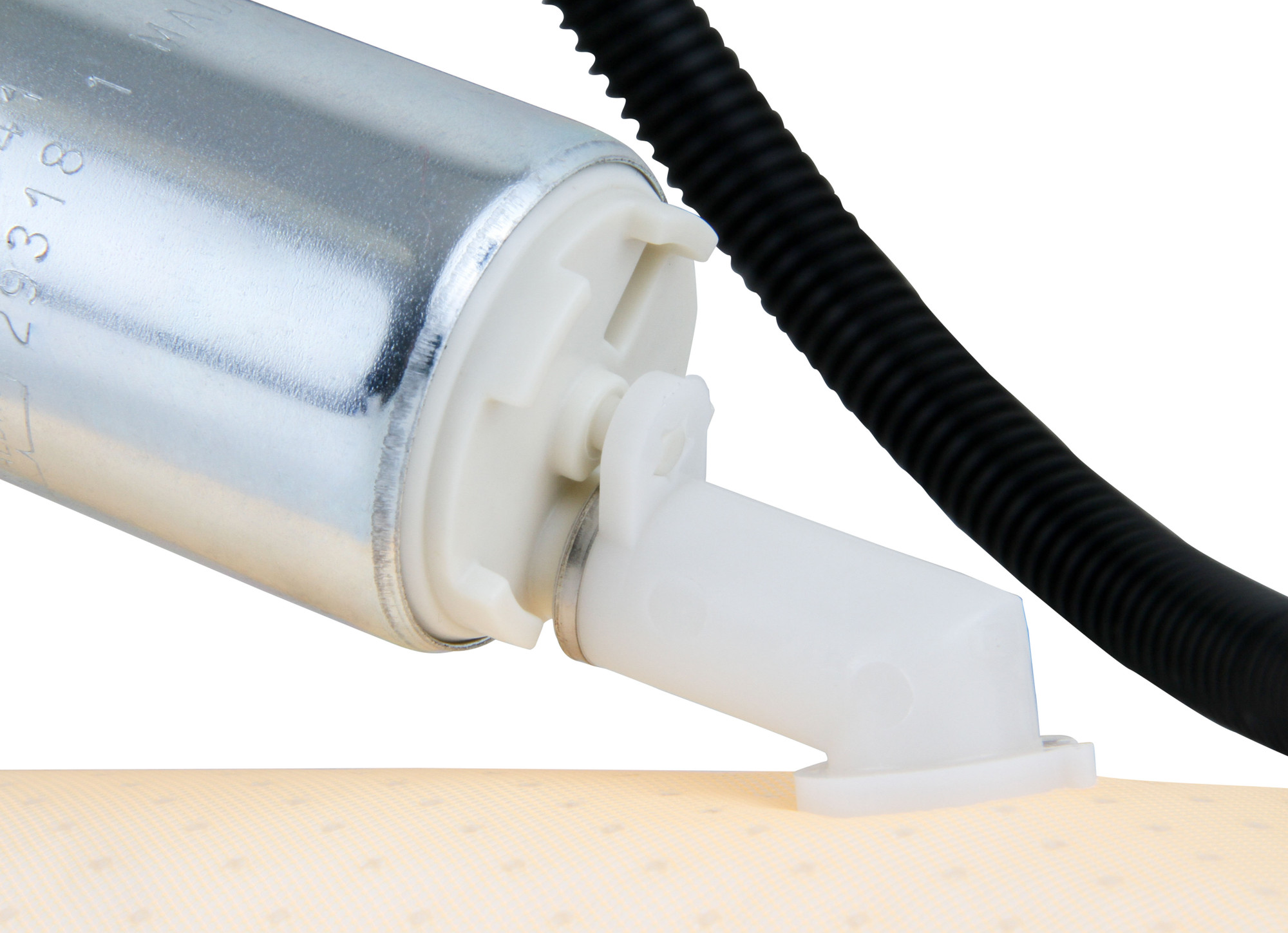

DescriptionIn-tank fuel pump module for 1973-1987 GM C/K Series. Supports Up To 750 Horsepower.
Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1973-1987 GM C/K Series Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
Specifications:
Gasket Or Seal Included: |
Yes |
Fuel Type: |
Gasoline |
Material: |
Steel and Plastic |
Outlet Outside Diameter: |
3/8 IN |
Part Type: |
Fuel Pump Module Assembly |
Product Type: |
Fuel Pump Module |
Resistance Ohms Empty: |
0 82 |
Resistance Ohms Full: |
90 82 |
Application: |
1973-1987 Chevrolet / GMC C10 Series Truck |
Strainer Included: |
Yes |
Universal Or Specific Fit: |
Specific |
Grade Type: |
Performance |
Outlet Quantity: |
One |
