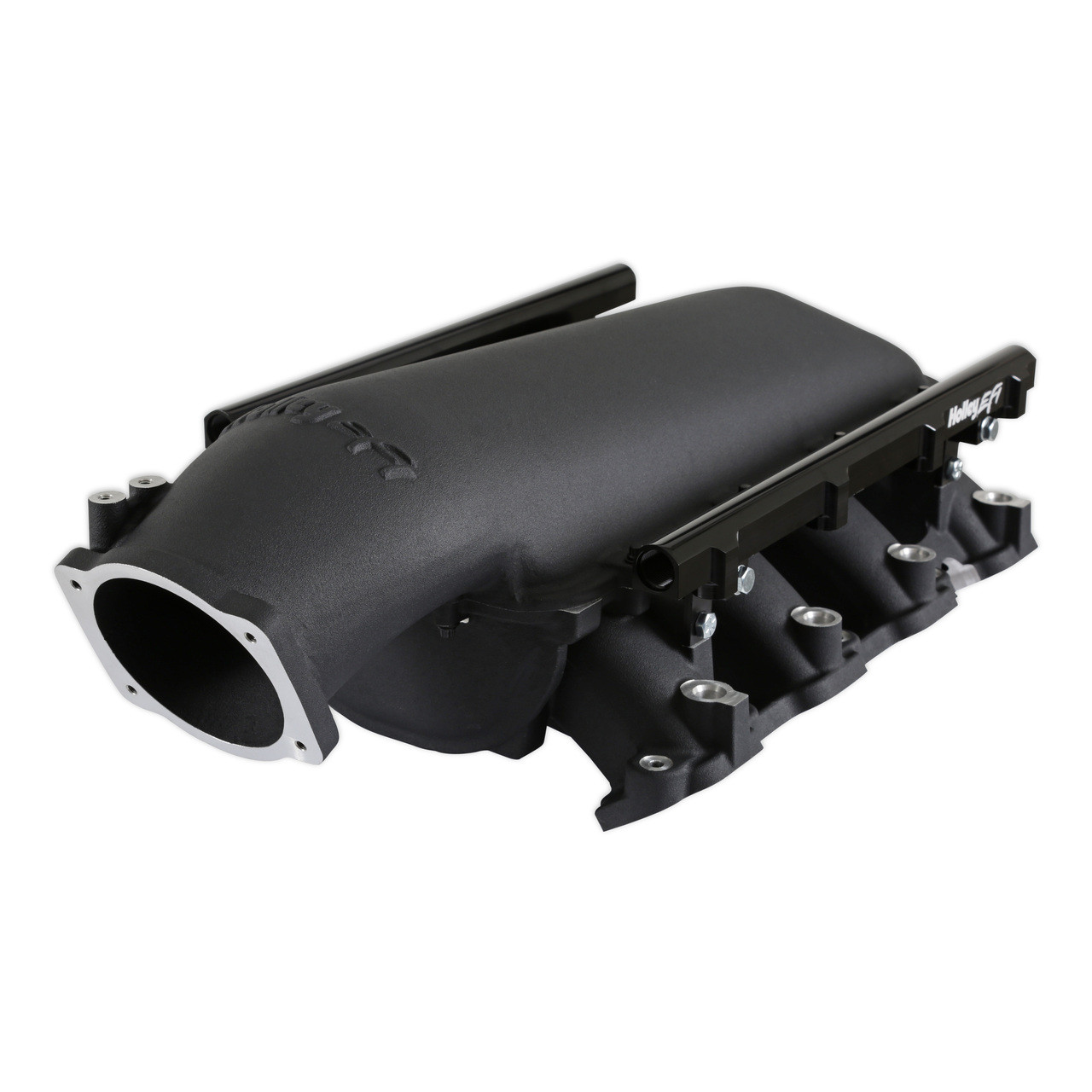

Holley EFI Holley Lo-Ram Manifold Kit and Port Injection Fuel Rails - GM Gen V LT Black - (EFI-300-718BK)

Description

Top-Feed - With Port Injection - Black Finish

For the port fuel injection option, the high volume -8AN fuel rail kit includes hardware and brackets to accommodate long (usually standard length) fuel injectors or short (such as Pico, or LS7) fuel injectors.

Features & Benefits

• Designed for GM Gen V engines equipped with GM LT type cylinder heads
• 105mm diameter throttle body opening accepts OEM 4-bolt LS/LT DBW or Holley LS/LT throttle bodies
• Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application
• Low-height top-feed plenum profile to fit under a stock or mildly modified hood
• Modular design & top entry plenum flange allows the use of popular Holley Hi-Ram plenum tops as well as facilitating custom fabricated plenum tops. Base manifold, plenum tops, and fabrication flanges available as separate kits
• Designed for the accommodation of plenum mounted air-to-water intercoolers for boosted applications
• Kits with port injection provide high volume fuel rails with 3/4-16 O-ring ports (8 AN). Mounting hardware is included
• 3.18-inches taller than a factory LT1 manifold
• As-cast aluminum (Satin) and black powder coat finishes available

Specifications:

Finish:	Black
Color:	Black
Gasket Or Seal Included:	No
Part Type:	Engine Intake Manifold Kit
Product Type:	Intake Manifold
Engine:	GM Gen V LT1
Grade Type:	Performance

Warranty:

Manufacturer's Limited 90 Day Warranty
