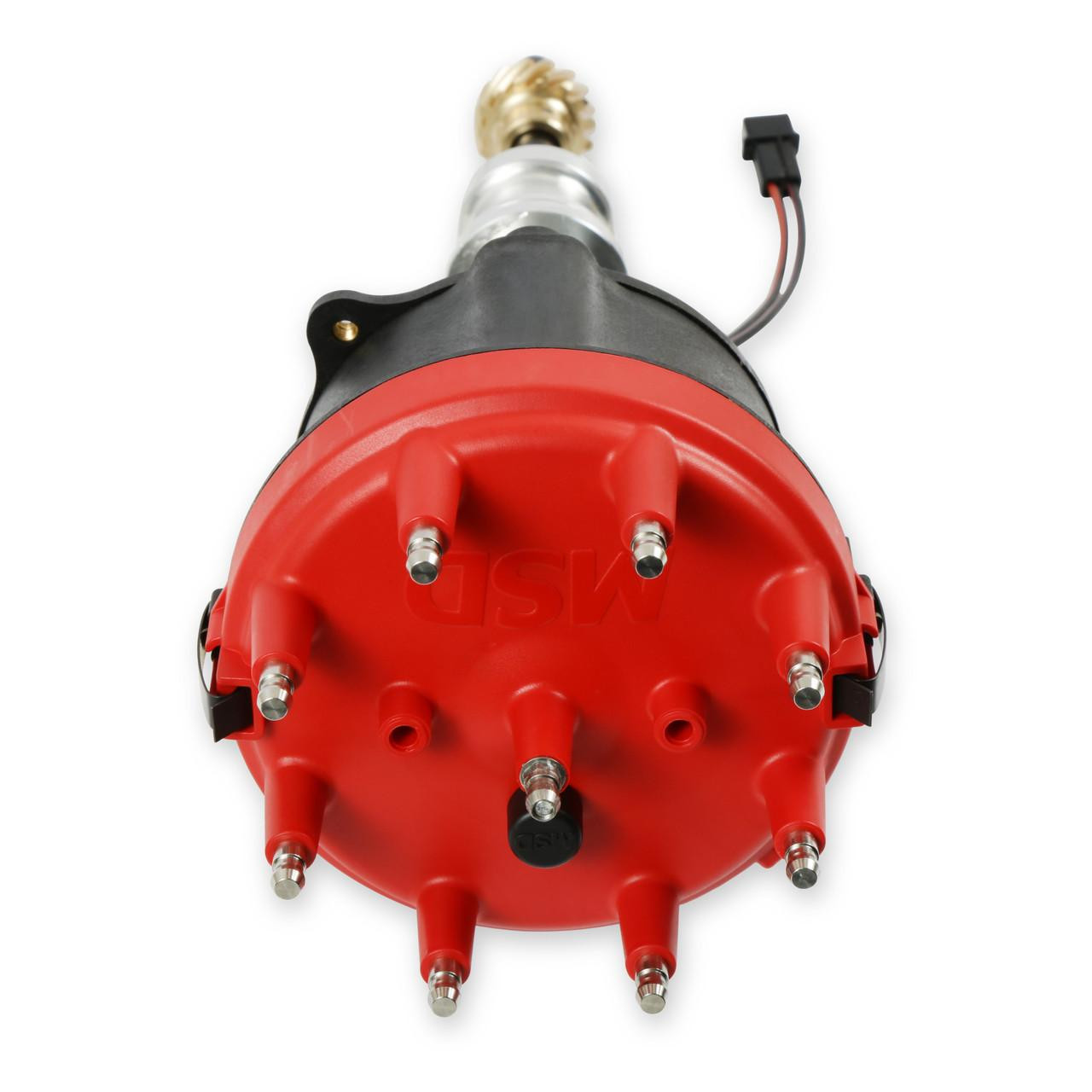

DescriptionSmall Block Ford - 289/302 - SBF - Must Be Used With an MSD 6, 7, or 8-Series Ignition
Must be used with MSD ignition.
Features & Benefits
- Pre-installed Bronze Gear for aftermarket billet roller camshafts
- Gear machined from AMPCO 45 aluminum bronze containing 5% Nickel
- CNC machined billet 6061-T6 aluminum housing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and TIG welded to the plate
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Mechanical advance assembly can be locked out for crank trigger systems
- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Must be used with an MSD Ignition Control
Specifications:
| Height: |
8.4375 in |
| Color: |
Red and Black |
| Part Type: |
Distributor |
| Qty: |
1 |
| Distributor Type: |
Magnetic Pickup |
| Product Type: |
Distributor |
Warranty:
Manufacturer's Limited 365 Day Warranty
