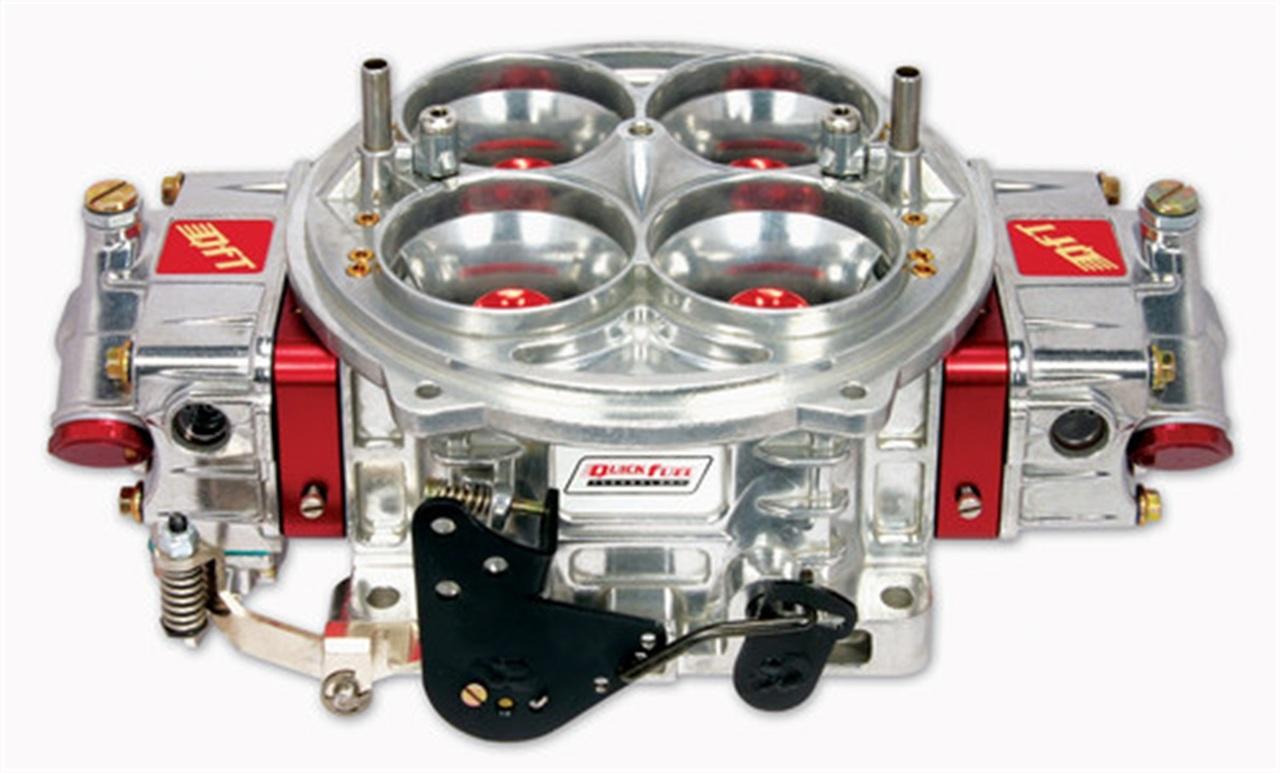

Quick Fuel QFX Series 4711 Carburetor, Mechanical Secondary, 3-Circuit, 1150CFM, Red Billet - (FX-4711)

Description

QFX Series Carburetor; 1150 cfm.; 1.800 in. Venturi; Dominator; All Aluminum Construction; Polished Finish w/Red Anodized Billet Metering Blocks;

Quick Fuel Technology(R) offers a wide array of carburetors designed for use with alternative fuels on street, strip, circle track, and forced induction applications. Carburetors are available for both methanol and E85 use, and QFT(TM) also offers conversion kits to convert your existing gasoline-powered carburetor as well. There are a number of factors to consider before making the conversion from gasoline to methanol. Methanol requires approximately two times more fuel flow than gasoline. For carburetors that use E85 ethanol fuel, you will require approximately 25 to 30 percent more fuel than gasoline.

Features & Benefits

• QFX Aluminum Main Body w/Raised Venturi
• Billet Aluminum Metering Blocks w/Screw In Restrictions
• Aluminum Fuel Bowls w/Dual Sight Windows/Fuel Inlets
• Nitrophyl Floats and Jet Extensions
• Viton 0.130 in. Needles and Seats
• Billet Aluminum Annular Booster Inserts
• QuickLink Adjustable Secondary Opening Adjustment
• Hand Assembled and Engine Tested

Specifications:

Barrel:	Four
Billet Color:	Red
Booster Type:	Annular
Carburetor Type:	FX Series
CFM:	1150
Choke:	None
Circuit:	3
Emission:	Without EGR
Finish:	Shiny
Flange:	OEM
Fuel System Type:	Carbureted
Fuel Type:	Gasoline
High Speed Air Bleed:	36
Idle Air Bleed Size:	47
Intermediate Air Bleed:	85
Material:	Aluminum
Part Type:	Carburetor
Primary Main Jet:	94
Secondary Main Jet:	94
Secondary Type:	Mechanical
Supercharged Application:	No
Throttle Bore:	2.000 in.
Type:	Automotive
Usage:	Racing
Primary Power Valve:	N/A
