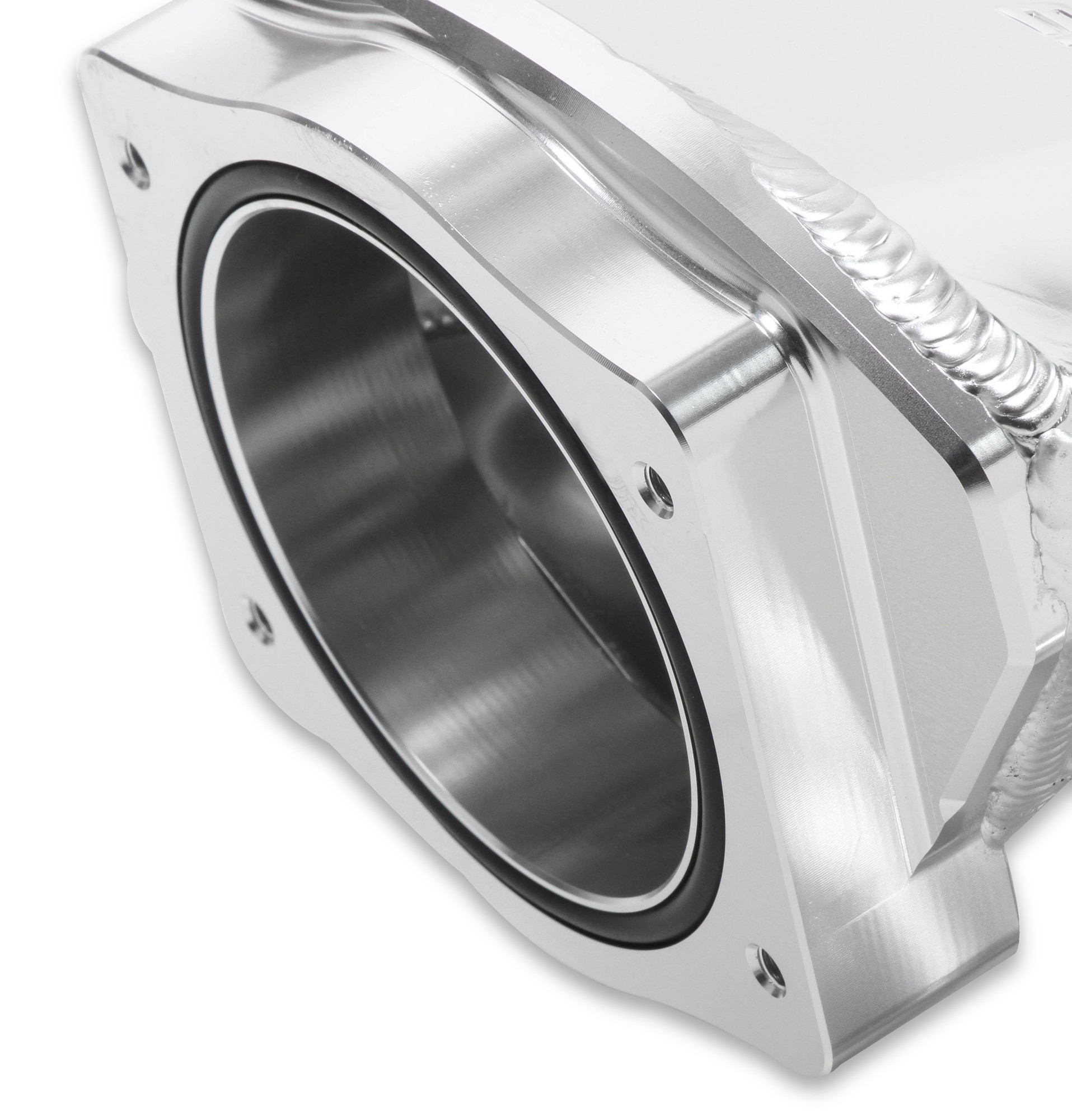

Holley EFI Sniper EFI Low-Profile Sheet Metal Intake Manifold GM LS1/LS2/LS6 92mm Silver - (EFI-820101-1)

Description

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525

Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available

Features & Benefits

• Silver finish creates high impact under-hood styling
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• 92mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Provision for MAP sensor located on rear of plenum
• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.

Specifications:

Color:	Silver
Finish:	Silver
Gasket Or Seal Included:	Yes
Product Type:	Intake Manifold
Construction:	Fabricated
Front Height:	6.392 inch
Injector Style Provision:	EV1
Style:	EFI
Engine:	GM LS1/LS2/LS6
Fuel System Type:	EFI
Part Type:	Engine Intake Manifold
Rear Height:	5.684 inch
Throttle Bore:	92mm

Warranty:

Manufacturer's Limited 90 Day Warranty
