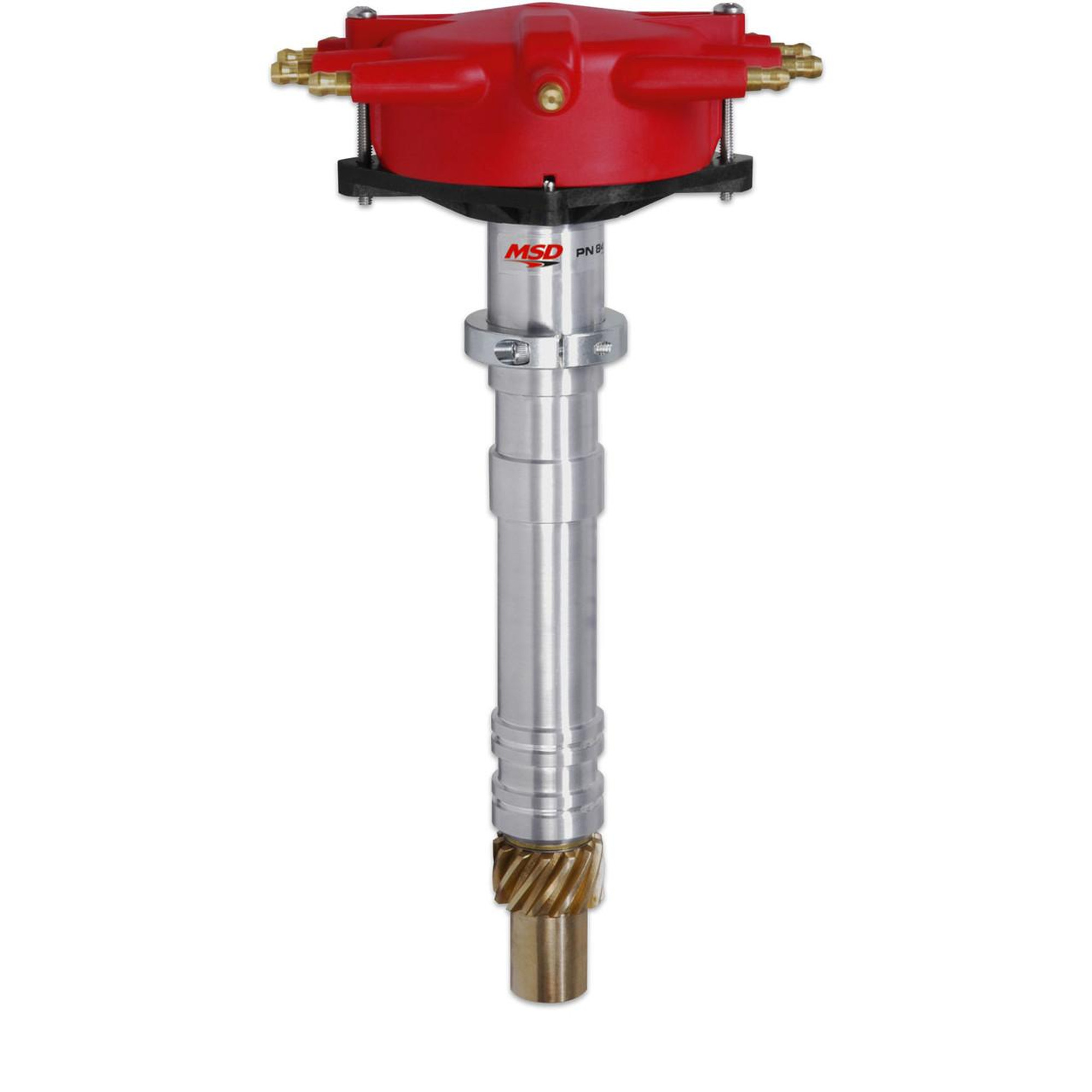

MSD Super Tall Block Crab Cap Distributor, Chevy V8 - (MSD-8486)

Description

Low-profile, tall block, racing distributor must be used with an MSD 6, 7 or 8-series ignition and a crank trigger.

Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.

Features & Benefits

• Designed to fit low in the block to clear firewall and intake combinations
• Must be used with an MSD Crank Trigger and MSD Ignition Control
• Supplied with small, low crab style distributor cap, rotor and bronze gear
• O-ring seals can be added to modified blocks to improve oil pressure control
• Special oil tract improves lubrication to the distributor and cam gear
• Shaft is guided by a sealed ball bearing and an extra long sintered bushing
• Oversized polished steel shaft with a QPQ coating for friction reduction
• Adjustable slip collar for engines with modified deck heights
• CNC machined billet aluminum housing and Dupont Rynite base
• 0.500” taller housing for extra tall Chevrolet based engine blocks

Specifications:

Part Type:	Distributor
Color:	Red
Product Type:	Distributor
Distributor Type:	Crank Trigger

Warranty:

Manufacturer's Limited 365 Day Warranty
