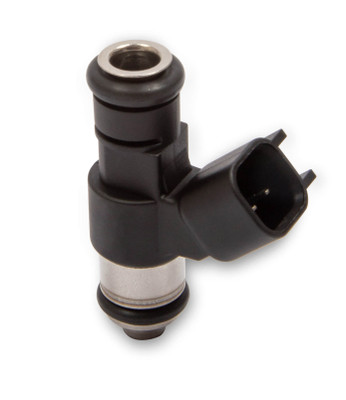

DescriptionPICO/EV6 - 120 lb/hr - High Impedance
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features & Benefits
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow: 120 lb./hr. at 60 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
Specifications:
| Body Diameter: |
0.65 |
| Color: |
Black |
| Fuel Type: |
E-85, Gasoline |
| Impedance: |
High (12.2 Ohm) |
| Body Length: |
1.85" |
| Part Type: |
Fuel Injector |
| Connector Series: |
EV6 |
| Gasket Or Seal Included: |
Yes |
| Mounting Hardware Included: |
No |
| Product Type: |
Fuel Injector |
| Body Style: |
EV6 |
| Flow Rate: |
120 4U |
| Grade Type: |
Performance |
| O-Ring to O-Ring: |
1.421 |
Warranty:
Manufacturer's Limited 90 Day Warranty
