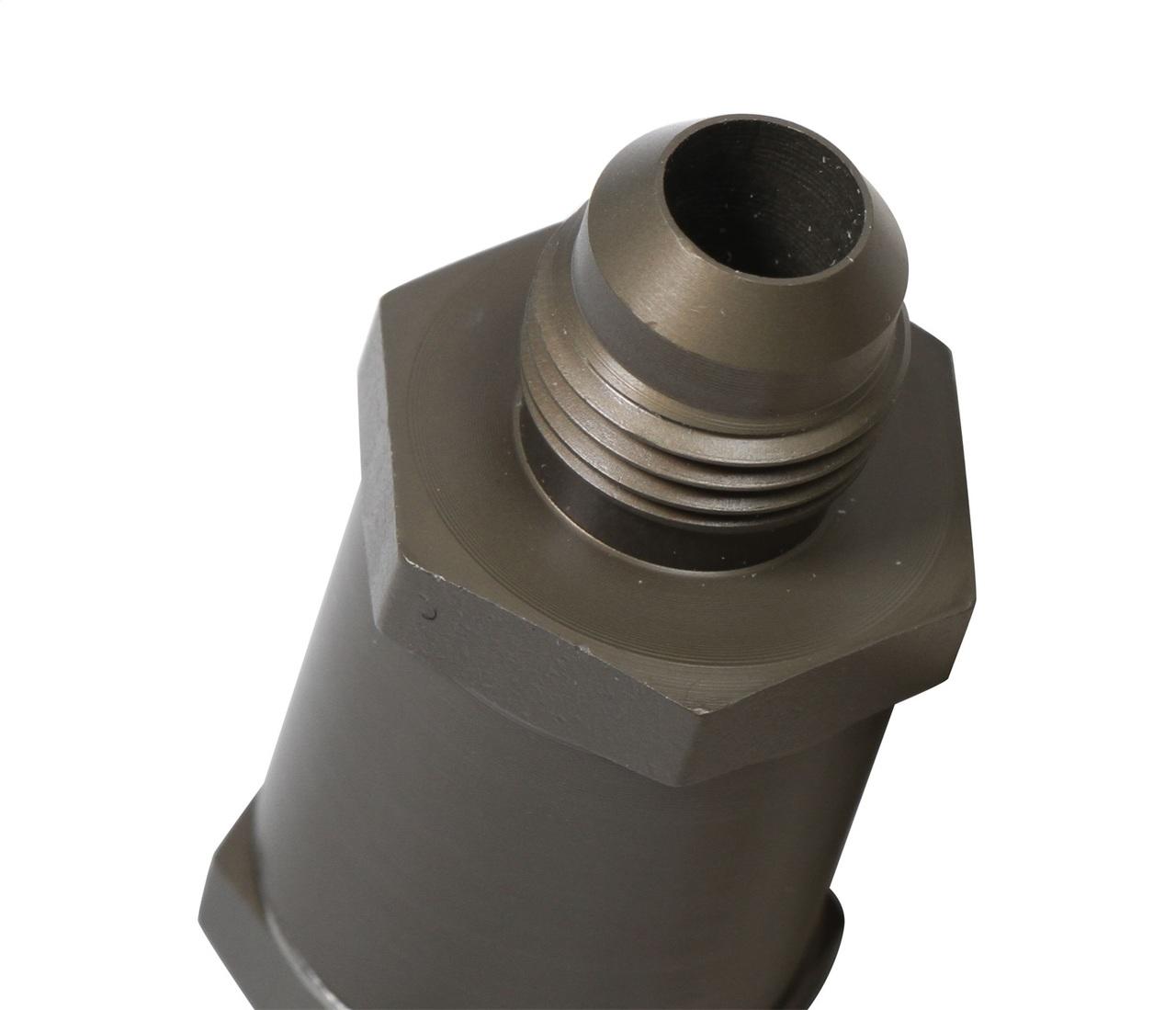

DescriptionUltraPro In-Line One-Way Check Valve; Size: -12AN Male to -12AN Male; Stainless Steel Hinge Door; GF-600s Viton Seals;
Earl's is pleased to release a new one-way check valve that is ideal for use on fuel and oil systems. Now offered with internal stainless steel hinge and GF-600S Viton(R) seal. The GF-600S Viton(R) is the highest quality seal material for all types of fuels including diesel & alcohol. The Internal spring releases to full flow at 1 psi (Note: blowing through it will only partially release the hinge). High PSI Rating is 1250 PSI. This product uses a proven military design & provides for a more compact unit over conventional flapper check valves.
Features & Benefits
- Original Surplus Valve
- w/Modern Elastomers
- Unaffected By Most Fuels
- Unaffected By Most Lubes
Specifications:
Adapter Type: |
Check Valve |
Body Length: |
1.850 in. |
Diameter (in.): |
1.500 in. |
Finish: |
Anodized Pewter |
Fitting Size: |
-12AN |
Inlet Size: |
12AN Male |
Material: |
Aluminum |
Maximum Psi: |
1250 |
Outlet Size: |
12AN Male |
Overall Dimension: |
3.500 in. |
Part Type: |
Multi Purpose Check Valve |
Style: |
One Way |
