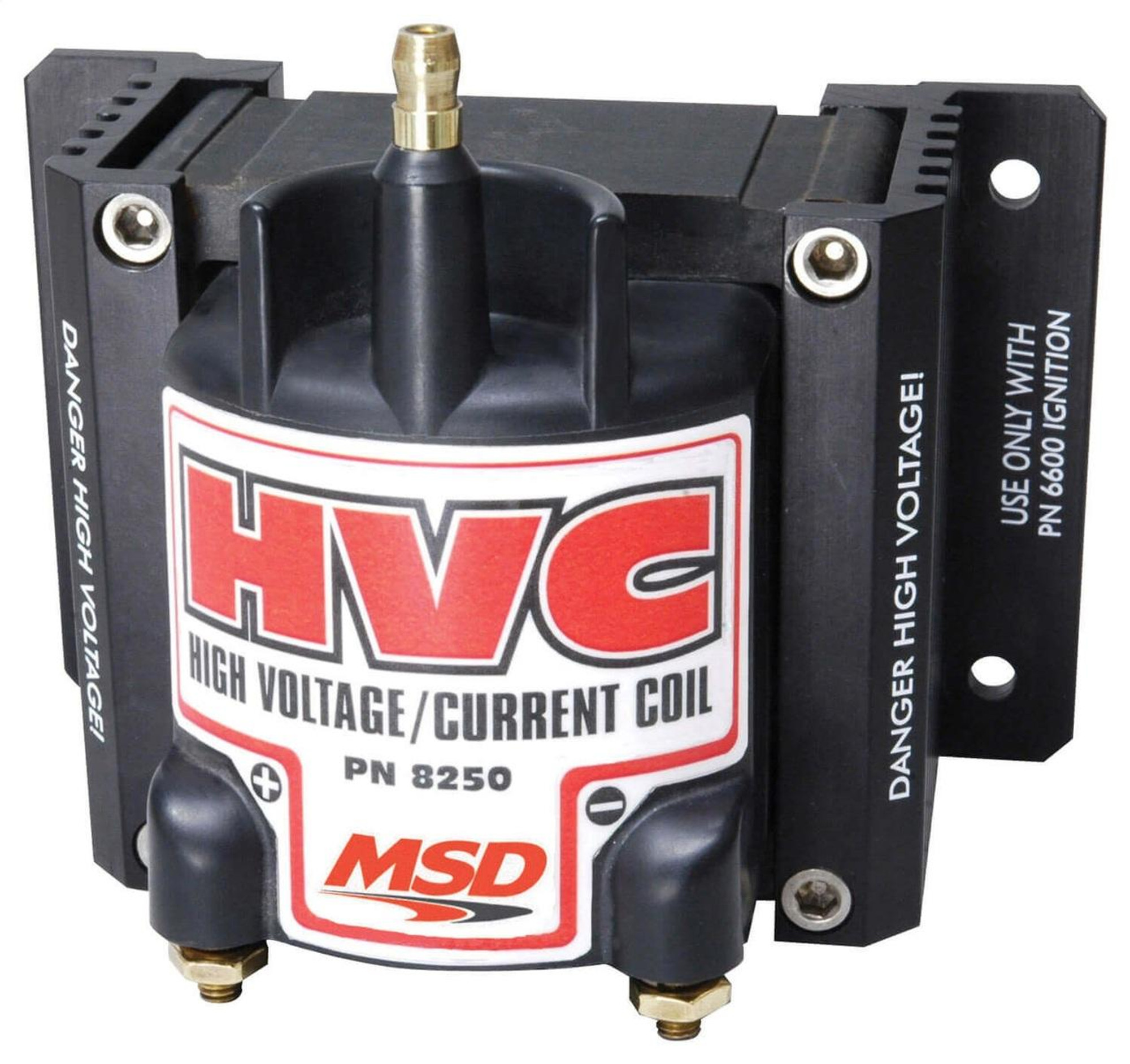

Description6 HVC Ignition Coil; 3mH Inductance; 34000 Max Voltage; 600mA Peak Current; 100:1 Turns Ratio; Designed For HVC Professional Racing Ignition Control PN[6631/6632];
The HVC Coil is designed exclusively for the HVC professional racing ignition control. The e-core design of the HVC Coil is more efficient in producing more output with less loss. MSD 6 HVC Coil must be used with MSD 6-HVC ignition.
Features & Benefits
- E-Core design produces more voltage and current
- Runs 50% cooler than canister coils
- Massive laminations/windings are engineered for less energy loss
- Delivers High Voltage To ionize The Plug Gap
Specifications:
Part Type: |
Ignition Coil |
Inductance: |
3 mH |
Peak Current: |
600 mA |
Secondary Resistance: |
360 ohms |
Turns Ratio: |
100:1 |
Color: |
Black |
Maximum Voltage: |
34000 |
Primary Resistance: |
.070 ohms |
Spark Duration: |
200 uS |
Type: |
Circle Track |
Item Weight: |
3.750 lbs. |
