Description

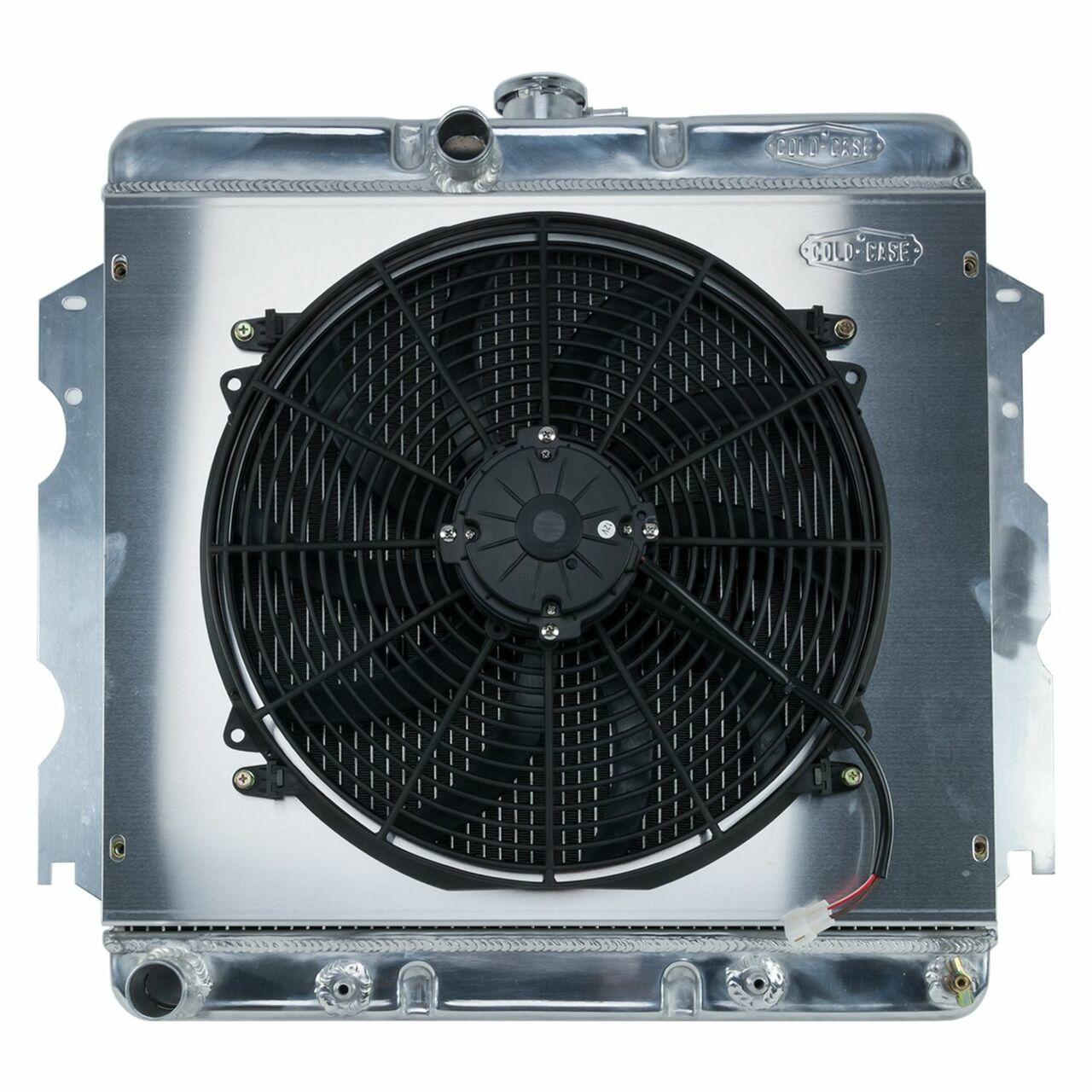

67-74 Mopar A/B/E-Body w/SB & AT Aluminum Performance Radiator & 16" Fan Kit
1967-1974 Mopar A/B/E Body Small Block Aluminum Performance Radiator and 16 Inch Fan Kit. AT Cars. Fits some of the following. Double check dimensions.
67-73 Barracuda
70 Belvedere
68-73 Charger
70-74 Challenger
68-73 Coronet
67-69 Dart
68-72 GTX
68-73 Road Runner
68-73 Satellite
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
Fan Diamete 16 Inch
All Aluminum
(2) 1.25 inch Tubes
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For Automatic trans
Radiator Specs
Core Height 18 inch
Core Width 20.5 inch
Overall Height 23.5
Overall Width 26.3 brackets
Overall Thickness 6 inch
Tubes (2) 1.25 inch Tubes
Upper Hose 1.40 inch
Lower Hose 1.40 inch
Specifications:
AMP DRAW: |
5.69 Avg |
Core Height: |
18 Inch |
Fan Diameter: |
16 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
23.5 Inch |
Part Type: |
Radiator Kit |
Shroud Material: |
Yes |
Transmission Type: |
Automatic |
Blade Material: |
Curved Nylon |
Core Width: |
20.5 Inch |
Fan Quantity: |
1 |
Max Fan CFM: |
2800 CFM |
Overall Width: |
26.3 Inch |
Thickness: |
6.75 Inch |
