Description

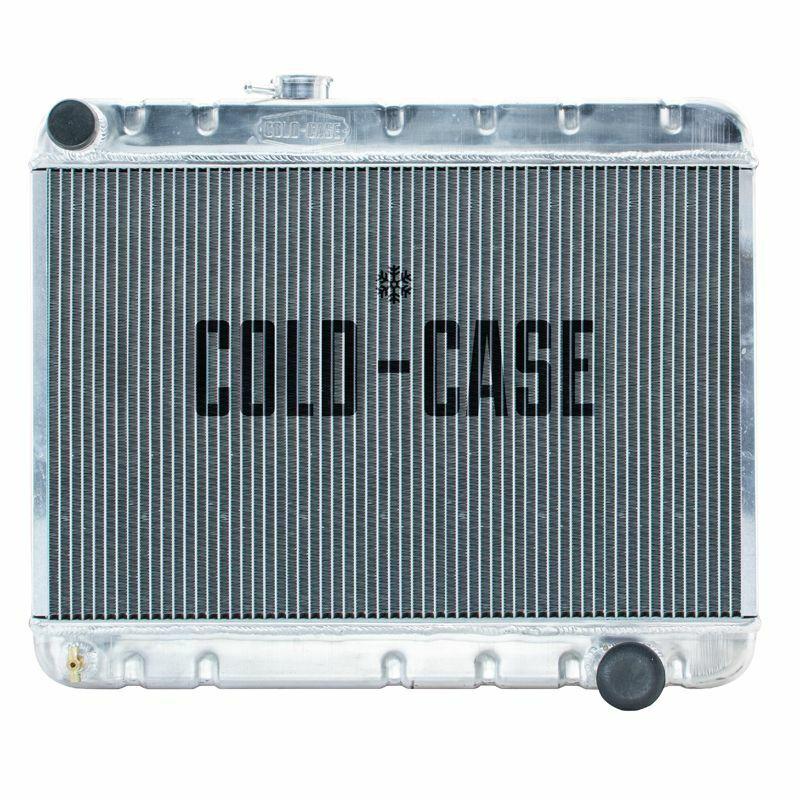

66-67 GTO w/MT & AC 17.5" Aluminum Radiator Polished OE Style Tanks 25x21.9x3
1966-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator. MT Cars w/AC. This is the taller 17.5 inch core for factory AC cars.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For manual/standard trans
Direct fitment for 66-67 GTO
Radiator Specs:
Core 17-1/2 inch
Width 25-1/8 inch
Overall Height 21-7/8 inch
Overall Thickness 3 inch
Upper Hose 1-1/2 inch
Lower Hose 1-13/16 inch
Tubes (2) 1 inch Tubes
Specifications:
| Color: |
Silver |
| Core Width: |
25.125 Inch |
| Overall Height: |
21.875 |
| Transmission Type: |
Manual |
| Core Height: |
17.5 Inch |
| Finish: |
Polished |
| Material: |
Aluminum |
| Part Type: |
Radiator |
| Thickness: |
3.0 Inch |
Warranty:
All Cold-Case radiators are guaranteed to be free from material and workmanship defects for the lifetime of the radiator.
