Description

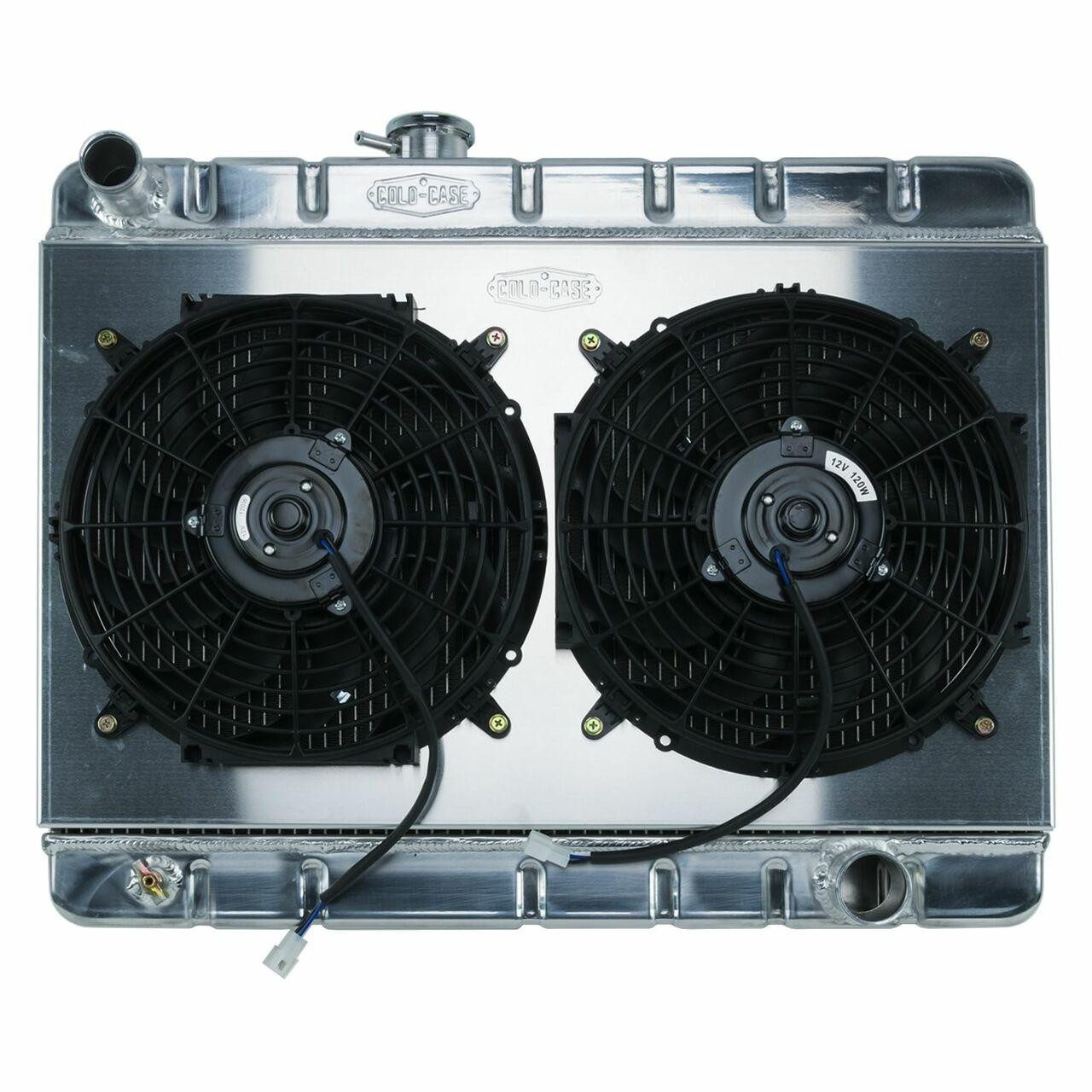

66-67 GTO w/MT w/o AC 15.5" Aluminum Radiator & Dual 12" Fan Kit 25.2x20x3
1966-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator and 12 inch dual fan kit. MT Cars w/o AC. This is the smaller 15.5 inch core for cars without factory AC.These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
Fan Diameter 12 Inch
All Aluminum
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For Manual
Direct fitment for 66-67 GTO
Radiator Specs:
Core 15-1/2 inch
Width 25-1/4 inch
Overall Height 20-1/8 inch
Overall Thickness 6 inch
Upper Hose 1-1/2 inch
Lower Hose 1-13/16 inch
Tubes (2) 1 inch Tubes
Trans Lines 12-1/4 inch
Specifications:
AMP DRAW: |
6.85 Avg |
Core Height: |
15.5 Inch |
Fan Diameter: |
12 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
20.125 Inch |
Thickness: |
6.75 Inch |
Blade Material: |
Curved Nylon |
Core Width: |
25.25 Inch |
Fan Quantity: |
2 |
Max Fan CFM: |
3200 CFM |
Part Type: |
Radiator Kit |
Shroud Material: |
Yes |
Transmission Type: |
Manual |
