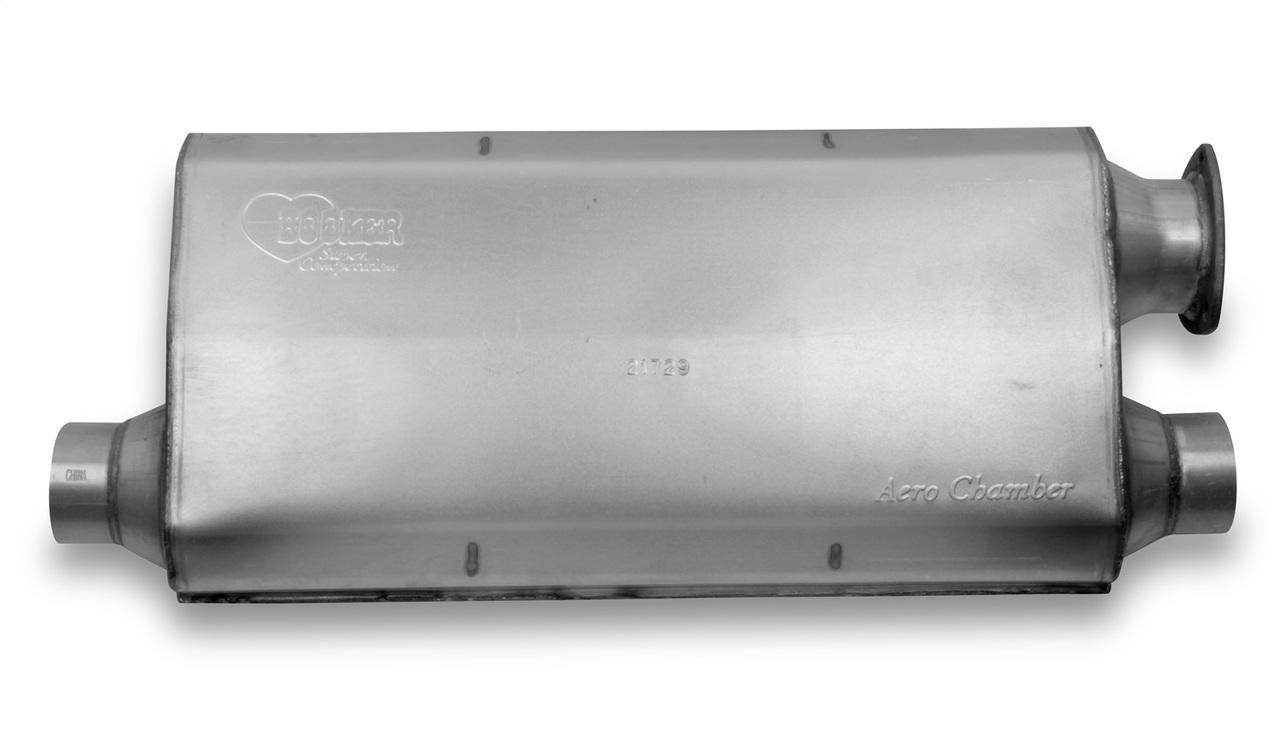

DescriptionAero Chamber Muffler; 4.75 in. H x 10.25 in. W x 20 in. L; 3 in. Inlet Diameter; 2.5 in. Outlet Diameter; Offset Inlet; Dual Outlet; Uncoated;
The raw aluminized steel Aero Chamber is designed to do much more than simply muffle exhaust noise. The Aero Chamber Muffler produces a deep throaty powerful sound that will not change with time. The Hooker Aero Chamber uses a unique step principal, similar to that which is currently popular in racing header design. The aerodynamically designed chambers flow 23% better and produce more horsepower and torque than the most popular high performance brand.
Features & Benefits
- Single 3 in. Offset Inlet/Dual 2.5 in. Outlets
- Stepped Accel. Chamber Increase Exhaust Gas Velocity/Max Flow
- Three Internal Bulk Heads For Superior Case Durability/Stability
- 16 Gauge Aluminized Steel Case
- OE Mounting Provisions
- Reinforced Inlets and Outlets
- Stainless Steel Perforated Plate Eliminates Internal Rust
- Aerodynamic Lens Directs Sound Pressure Waves Into Accel. Chamber
- Sound Absorption Chamber Eliminates High Frequency Sound Waves
- Deep Throaty Powerful Sound
- Resonance Chamber/Tuning Tube Cancels Unwanted Frequencies
Specifications:
Material: |
Aluminized Steel |
Part Type: |
Exhaust Muffler |
Body Height: |
4.750 in. |
Body Width: |
10.250 in. |
Inlet Connection Type: |
Pipe |
Inlet Outside Diameter: |
3.000 in. |
Inlet Size: |
3.000 in. |
Muffler Type: |
Chambered |
Outlet Outside Diameter: |
2.500 in. |
Outlet Size: |
2.500 in. |
Overall Length: |
24.000 in. |
Tip Quantity: |
0 |
Body Length: |
20.000 in. |
Finish: |
Natural |
Inlet Inside Diameter: |
3.000 in. |
Inlet Position: |
Offset |
Inlet Type: |
Single Offset |
Muffler Count: |
1 |
Outlet Position: |
Offset |
Outlet Type: |
Dual Opposite End Outlet |
Shape: |
Oval |
