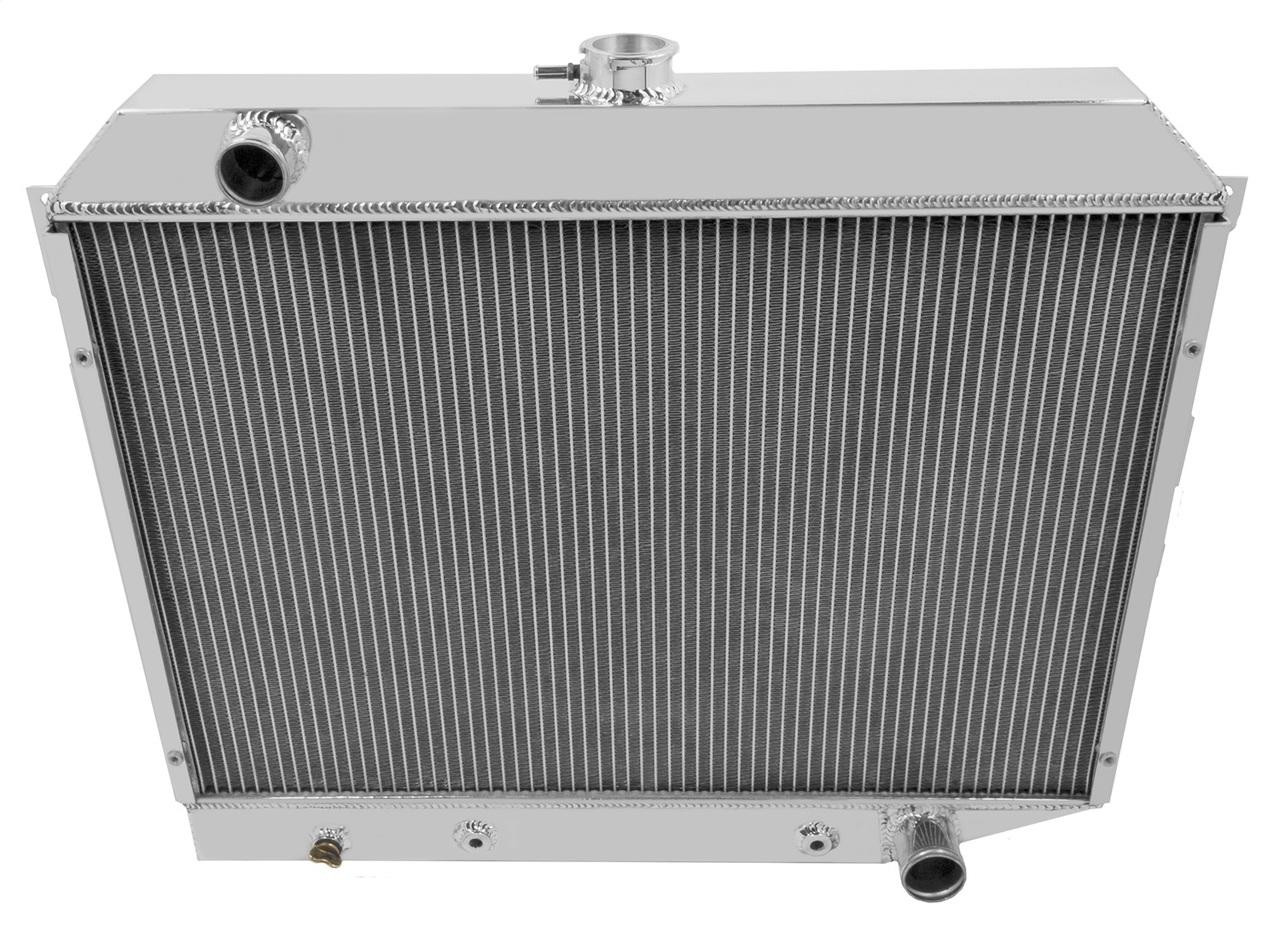

DescriptionAluminum Radiator; 4-Row; 1 1/2 in. Inlet; 1 3/4 in. Outlet; 23 5/8 x 28 3/4 in. Overall; Bracket Mount;
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering Frostbite Performance Cooling Products. When it comes to keeping your ride cool, Make it Frostbite!
Features & Benefits
- 100 Percent TIG Welded Seams
- Aircraft Quality Aluminum Core/Fittings/Tanks
- Billet Aluminum Filler Neck And OEM Brass Petcock
- More Cooling Fins Per Inch For More Efficient Cooling
- Custom Frostbite High Performance 16 lb. Radiator Cap
- Polished Top And Tanks For Custom Show Appearance
- Applications Supporting Up To 1000+ Horsepower
Specifications:
| Part Type: |
Radiator |
| Material: |
Aluminum |
| Cooling Row Diameter: |
0.6875 in. |
| Core Thickness: |
2.760 in. |
| Hose Location Inlet: |
Driver |
| Inlet Diameter: |
1.500 in. |
| Mounting: |
Bracket Mount |
| Outlet Diameter: |
1.750 in. |
| Overall Length: |
28.750 in. |
| Radiator Core Row Quantity: |
4 |
| Transcooler Provision: |
0.125 in. -27NPT |
| Core Dimension: |
16.250 in. x 26.000 in. |
| Flow Style: |
Down Flow |
| Hose Location Outlet: |
Passenger |
| Item Height: |
23.625 in. |
| Mount Type: |
Bracket Mount |
| Overall Dimension: |
23.625 in. x 28.750 in. |
Warranty:
Manufacturer's Limited 90 Day Warranty
