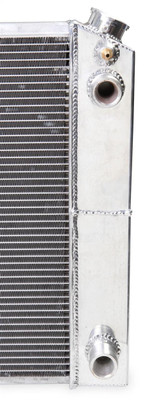

DescriptionAluminum Radiator; 3 Row; AN Bungs Inlet/Outlet; 18 1/2 x 26 in. Overall; Flange Mount; For Use w/LS Engine Swap 4.8/5.3/6.0/6.2/7.0L;
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holl ey is proud to introduce its latest offering Frostbite Performance Cooling Products. When it comes to keeping your ride cool, Make it Frostbite!
Features & Benefits
- 100 Percent TIG Welded Seams
- 1 Year Limited Warranty
- Aircraft Quality Aluminum Core/Fittings/Tanks
- Billet Aluminum Filler Neck And OEM Brass Petcock
- More Cooling Fins Per Inch For More Efficient Cooling
- Custom Frostbite High Performance 16 lb. Radiator Cap
- Polished Top And Tanks For Custom Show Appearance
- 3-Row Supporting Applications w/600+ Horsepower
- Flow Style Is Dual Pass
- Designed To Maximize Cooling Efficiency
Specifications:
Material: |
Aluminum |
Part Type: |
Radiator |
Cooling Row Diameter: |
0.6875 in. |
Core Thickness: |
2.200 in. |
Hose Location Inlet: |
Passenger |
Inlet Diameter: |
AN Bungs |
Item Height: |
18.500 in. |
Mount Type: |
Flanges |
Outlet Size: |
AN Bungs |
Overall Length: |
26.000 in. |
Radiator Core Row Quantity: |
3 |
Steam Port Fitting Size: |
0.025 in. NPT |
Core Dimension: |
17.000 in. x 20.750 in. |
Flow Style: |
Dual Pass |
Hose Location Outlet: |
Passenger |
Inlet Size: |
AN Bungs |
Mounting: |
Flange Mount |
Outlet Diameter: |
AN Bungs |
Overall Dimension: |
18.500 in. x 26.000 in. |
Transcooler Provision: |
No |
Width: |
9.250 in. |
