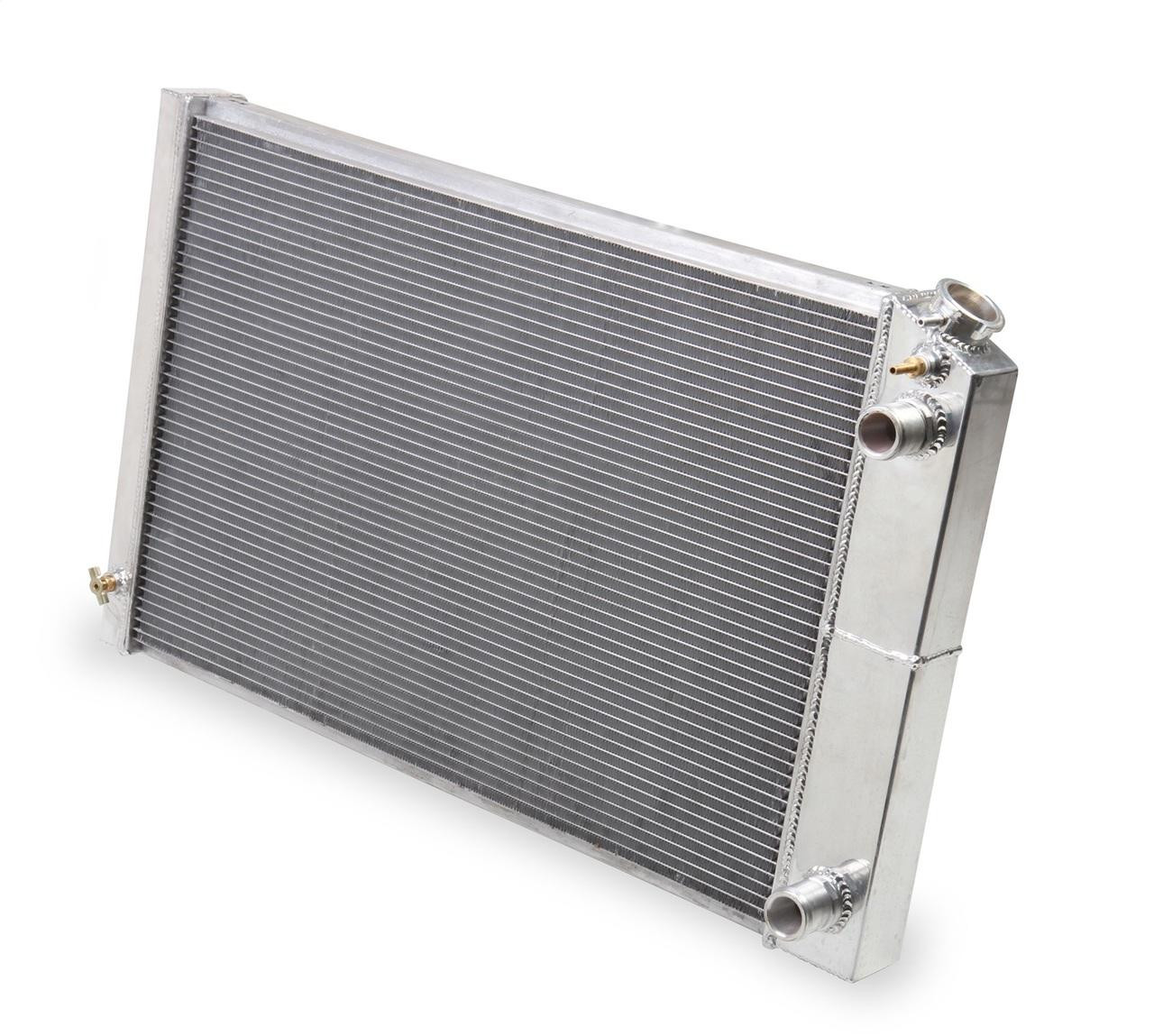

DescriptionAluminum Radiator; 3-Row; AN Bungs Inlet/Outlet; 19 1/8 x 29 1/4 in. Overall; Saddle Mount; For Use w/LS Engine Swap 4.8/5.3/6.0/6.2/7.0L;
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering Frostbite Performance Cooling Products. When it comes to keeping your ride cool, Make it Frostbite!
Features & Benefits
- 100 Percent TIG Welded Seams
- 1 Year Limited Warranty
- Aircraft Quality Aluminum Core/Fittings/Tanks
- Billet Aluminum Filler Neck And OEM Brass Petcock
- More Cooling Fins Per Inch For More Efficient Cooling
- Custom Frostbite High Performance 16 lb. Radiator Cap
- Polished Top And Tanks For Custom Show Appearance
- 3-Row Supporting Applications w/600+ Horsepower
- Flow Style Is Dual Pass
- Designed To Maximize Cooling Efficiency
Specifications:
Material: |
Aluminum |
Part Type: |
Radiator |
Core Dimension: |
17.000 in. x 24.000 in. |
Flow Style: |
Dual Pass |
Hose Location Outlet: |
Passenger |
Inlet Size: |
AN Bungs |
Mounting: |
Saddle Mount |
Outlet Diameter: |
AN Bungs |
Overall Dimension: |
19.125 in. x 29.250 in. |
Transcooler Provision: |
No |
Cooling Row Diameter: |
0.6875 in. |
Core Thickness: |
2.200 in. |
Hose Location Inlet: |
Passenger |
Inlet Diameter: |
AN Bungs |
Item Height: |
19.100 in. |
Mount Type: |
Saddle Mount |
Outlet Size: |
AN Bungs |
Overall Length: |
29.250 in. |
Radiator Core Row Quantity: |
3 |
Steam Port Fitting Size: |
0.025 in. NPT |
