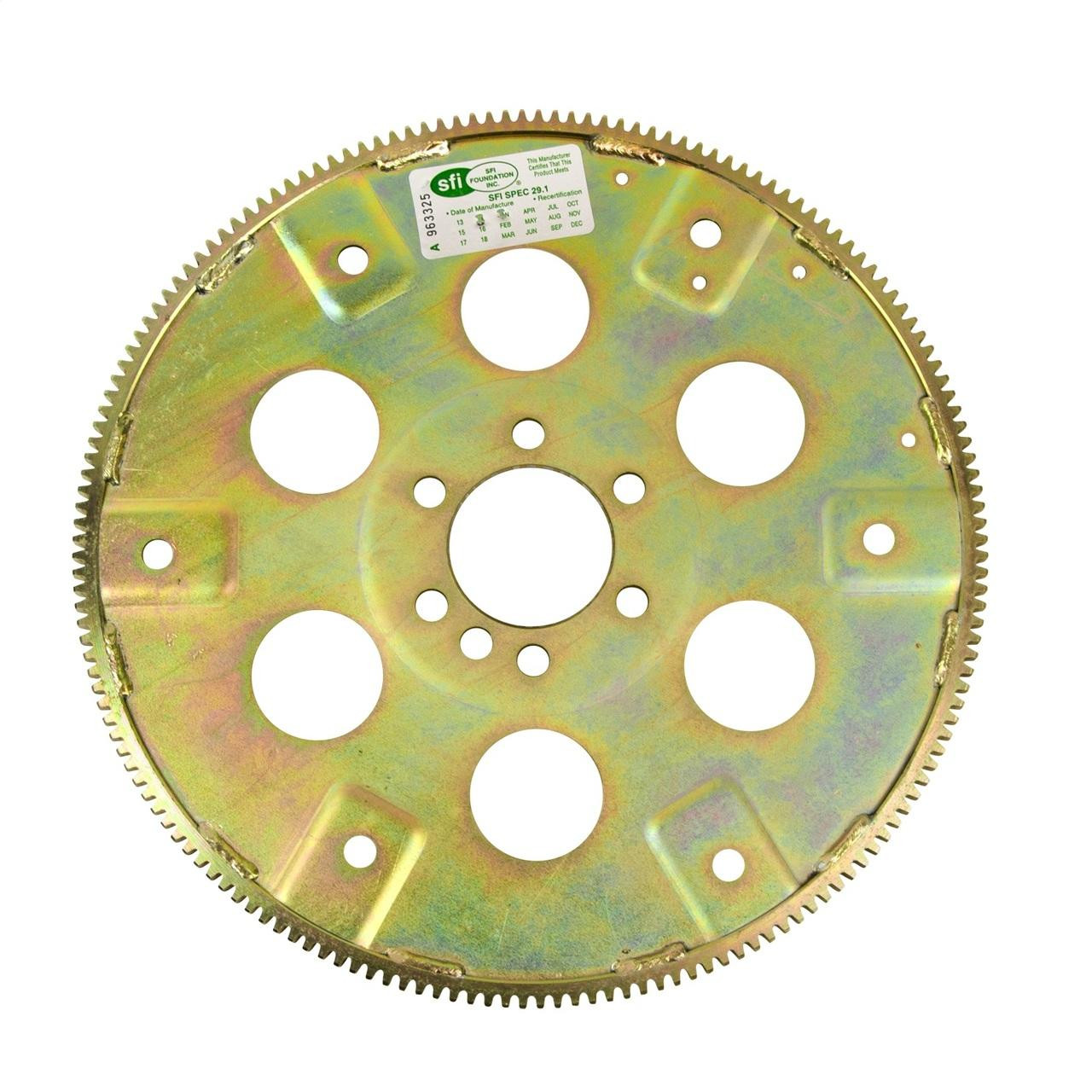

B&M Steel Flexplate, Small/Big Block Chevy, 168 Tooth, Dual Pattern 10.75"/11.5" - (BM-20230)

* This product is part of the HolleyDays Promotion, 10% has been taken off of the normal price and the promotion price is shown above. This price is valid until December 29th. *

Description

Automatic Transmission Flexplate; Standard SFI; Internal Balance; 168 Tooth; 10.75 in. and 11.5 in. Bolt Circle;

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B& M has you covered with our high performance flexplate designed for 1955-85 GM small block (internally balanced) V8 engines along with 4.3L V6 engines. Also fits 1990 and earlier GM big block (internally balanced) V8 engines with two piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5 inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B& M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B& M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions. Fits 1955 to 1985 GM small block V8 and 90 degree V6 engines uses 168 tooth ring gear. Also fits 1990 and earlier GM big block V8 engines and uses a 168 tooth ring gear. Does not fit 400 cid or 454 cid engines. Has 10.75 inch and 11.5 inch bolt patterns. Compatible with Powerglide; TH350; TH400 and TH700R4 automatic transmissions

Features & Benefits

• NHRA/IHRA Legal For All Classes
• Includes SFI Certification Sticker
• Ideal For Street Applications
• To Extreme Duty Racing
• To High RPM Use

Specifications:

Part Type:	Automatic Transmission Flexplate
Dual Pattern:	No
NHRA Accepted:	Yes
Outside Diameter:	14.100 in.
SFI Certification Sticker:	Included
Balance:	Internal
Crankshaft Bolt Hole Quantity:	6
IHRA Legal:	Yes
SFI Approved:	Yes
Timing Marks:	168
Item Weight:	7.000 lbs.
