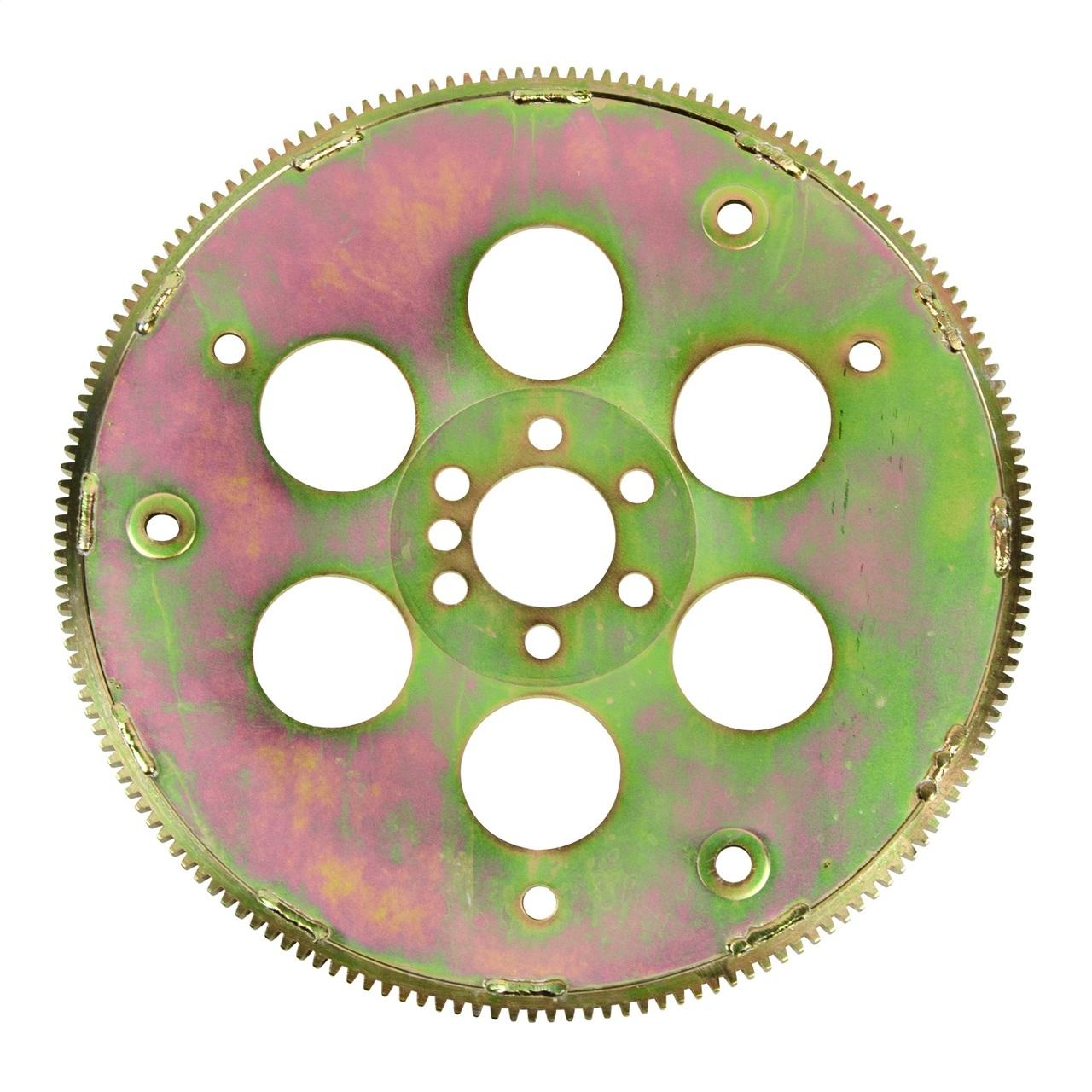

B&M 97-17 GM w/LS 4.8/5.3/6.0/6.2/7.0L, Automatic Transmission FlexplatE 168 Tooth - (BM-20340)

Description

Automatic Transmission Flexplate; Standard SFI; 168 Tooth; Dual; 11.5 in. Bolt Circle;

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B& M has you covered with our high performance flexplate designed for GM 1998-up 4.8L, 5.3L, 5.7L & 6.0L LS engines with 6-bolt crankshaft flange, including 2010-15 Camaro with L99 engine. Features include high tensile strength steel construction to resist elongation and cracking, 10.75 and 11.06 inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is finished with a Zinc plating and Chromate Conversion Coating for added corrosion resistance and durability. B& M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B& M has been delivering since 1953. Note: Will not fit 1999-00 6.0L applications with 0.400 inch extended crank flange/flat flexplate or 1999-00 4.8L engines that originally came with a manual transmission. A flexplate spacer is required for retrofitting Non LS era transmissions to LS engines. Fits 1998-up 4.8; 5.3; 5.7. 6.0L Gen III/IV LS engines including 2010-15 Camaro SS with L99 engine. Does not fit 1999-00 6.0L applications with 0.400 inch extended crank Flange/flat flexplate or 1999-00 4.8L engines that originally came with a manual transmission.

Features & Benefits

• NHRA/IHRA Legal For All Classes
• Includes SFI Certification Sticker
• Ideal For Street Applications
• To Extreme Duty Racing
• To High RPM Use

Specifications:

Part Type:	Automatic Transmission Flexplate
Dual Pattern:	Yes
NHRA Accepted:	Yes
Outside Diameter:	14.130 in.
SFI Certification Sticker:	Included
Crankshaft Bolt Hole Quantity:	6
IHRA Legal:	Yes
SFI Approved:	Yes
Timing Marks:	168
Item Weight:	7.000 lbs.
