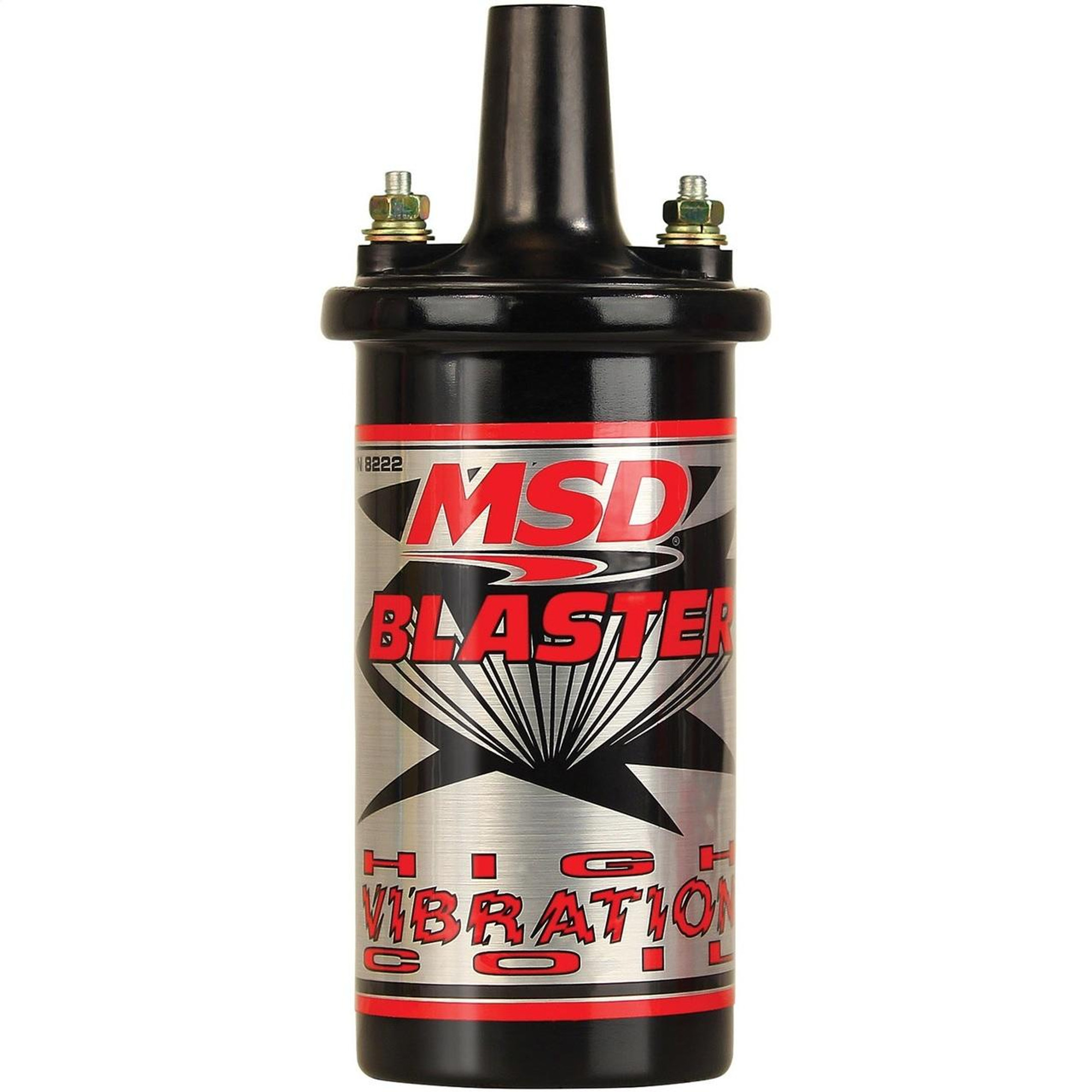

DescriptionBlaster High Vibration Ignition Coil; 8 mH Inductance; 45000 Max Voltage; 140 MA Peak Current; 350 uS Spark Duration; 100L1 Turns Ratio; Black;
If you are looking to upgrade your stock coil or want to compile men the performance of your MSD 6-Series Ignitions, our blaster coils are the right choice. The sturdy metal housing of the high vibration coil is completely potted with a premium grade epoxy to completely encase the coils primary and secondary windings. This protects the coils internal components from high and low frequency vibrations that are commonly experienced in racing.
Features & Benefits
- Encased w/epoxy to protect windings from high vibrations
- Improved output coil for electronic ignitions and MSD Ignitions
- 100:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- CARB E.O. Approved
Specifications:
Part Type: |
Ignition Coil |
Peak Current: |
140 mA |
Secondary Resistance: |
4.5K ohms |
Turns Ratio: |
100:1 |
Inductance: |
8 mH |
Maximum Voltage: |
45000 |
Primary Resistance: |
.700 ohms |
Spark Duration: |
350 uS |
