MSD Universal Crank Trigger Kit - (MSD-8655)

Crank Trigger Kit; Universal;

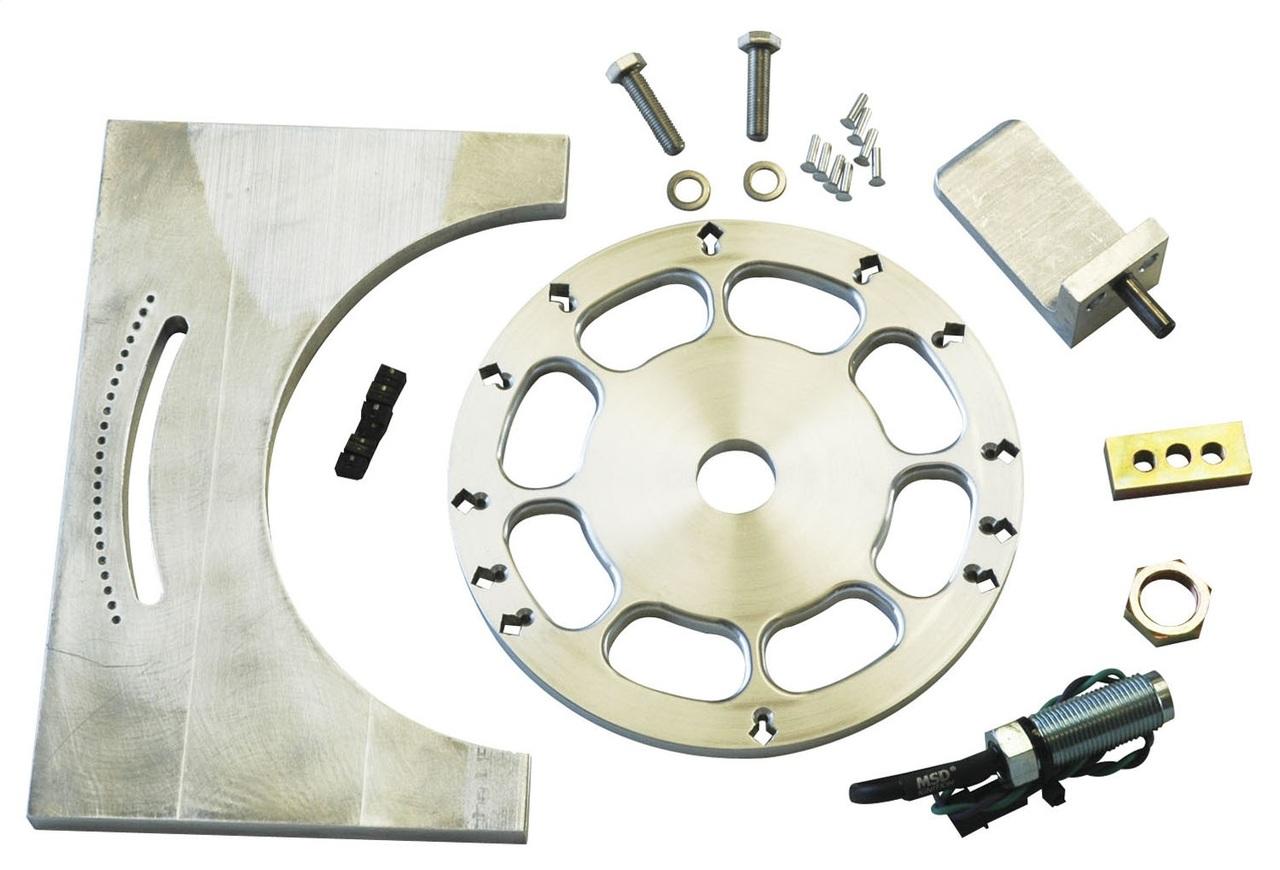

For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilize the ignition timing. The MSD flying magnet crank trigger system does exactly that by using magnets embedded in an aluminum wheel. The MSD flying magnet crank trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This flying magnet design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered. Each flying magnet crank trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The adjustable bracket provides a wide range of timing adjustment and spacers are included. These systems will trigger MSD 6, 7, 8 and 10 series ignitions and all MSD timing accessories.

Features & Benefits

• Comes w/7 in. Billet Aluminum Wheel
• Comes w/Oversized Bracket Arm
• Magnet Positions For 4/6/8/10/12- Cyl Engines
• Wide Range Of Timing Adjustment
• L Shaped Holder Can Be Machined 3/4 Or 3/8 Pickup
• Bracket Holds Pickup In Place
• Easy Plug And Play Wire To Ignition
