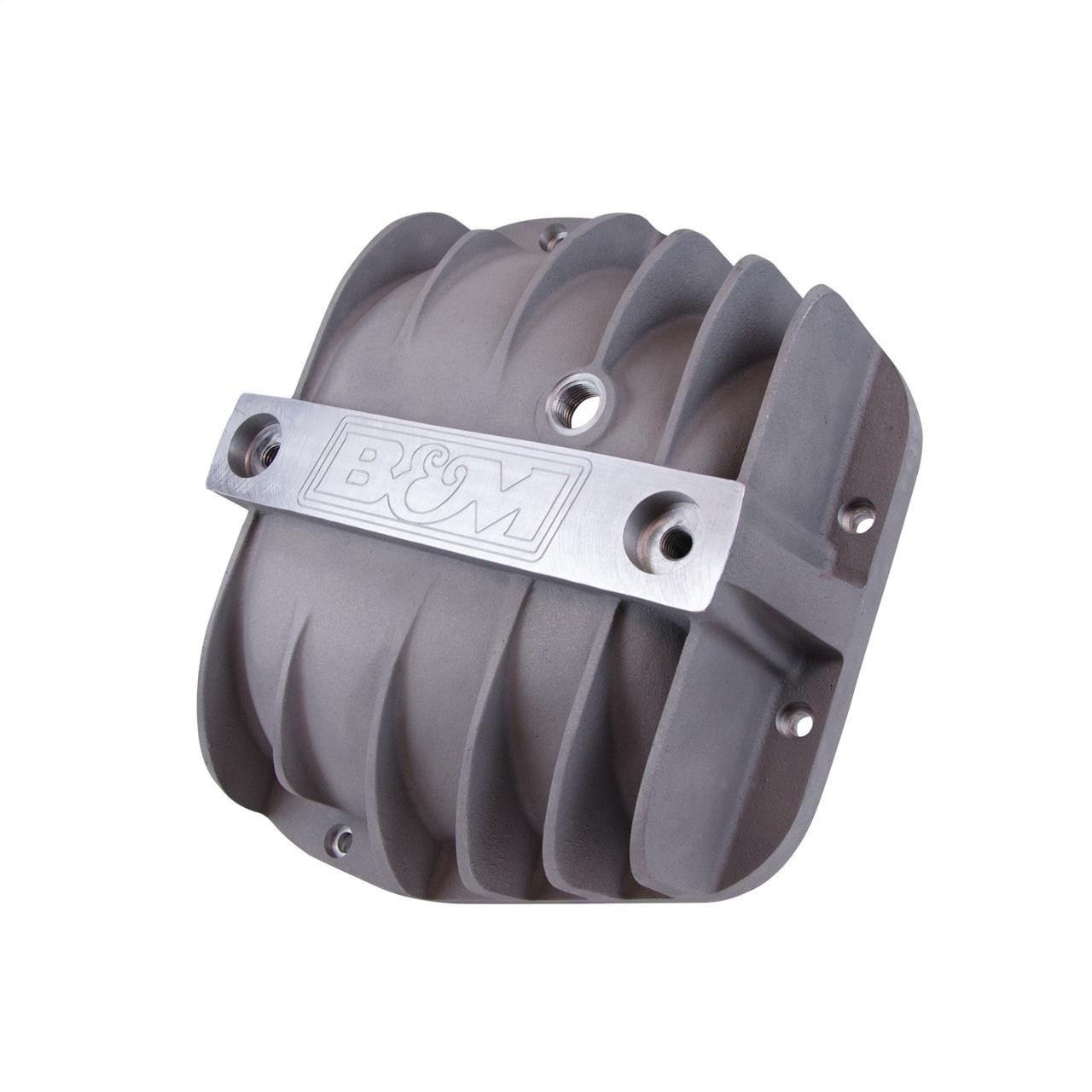

B&M 10-12 Ford F-150, Differential Cover - (BM-40298)

Description

Differential Cover; For Use w/Ford 9.75 in.; Incl. Cover/Fill And Drain Plugs/Bolts/Washers/Load Bolts/Nuts;

B& M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B& M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions. Designed to fit most vehicles with Ford 9.75in. differential; however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase/installation. Refer to ID guide and measurement diagram for spec ific dimensions. Check clearances for fit-Gasket Not Included.

Features & Benefits

• Additional Oil Capacity
• More Cooling Ability
• No Dipstick Modification
• Some Include Fluid Pickup Extension
• Built-In Drain Plugs
• Cast Aluminum

Specifications:

Material:	A356.0-T6 Aluminum
Part Type:	Differential Cover
Thickness:	3.840 in.
Bolt Quantity:	12
Drain Plug Included:	Yes
Finish:	Raw Aluminum
Package Contents:	Aluminum cover, fill & drain plugs, bolts & washers, load bolts & nuts, warranty
Bolt Pattern:	Ford 9.750 in.
Call Out Size (in):	3.28
Carrier Main Cap Support:	Yes
Filler Plug Included:	Yes
Gasket Or Seal Included:	No
Position:	N/A

Warranty:

Limited Lifetime
