DescriptionExternal Single Connection Ignition Coil; Entry Level Spark Output w/Single Connector; 3.6 mH Inductance; 40000 Max Volts; 80:1 Turns Ratio; Red/Black;

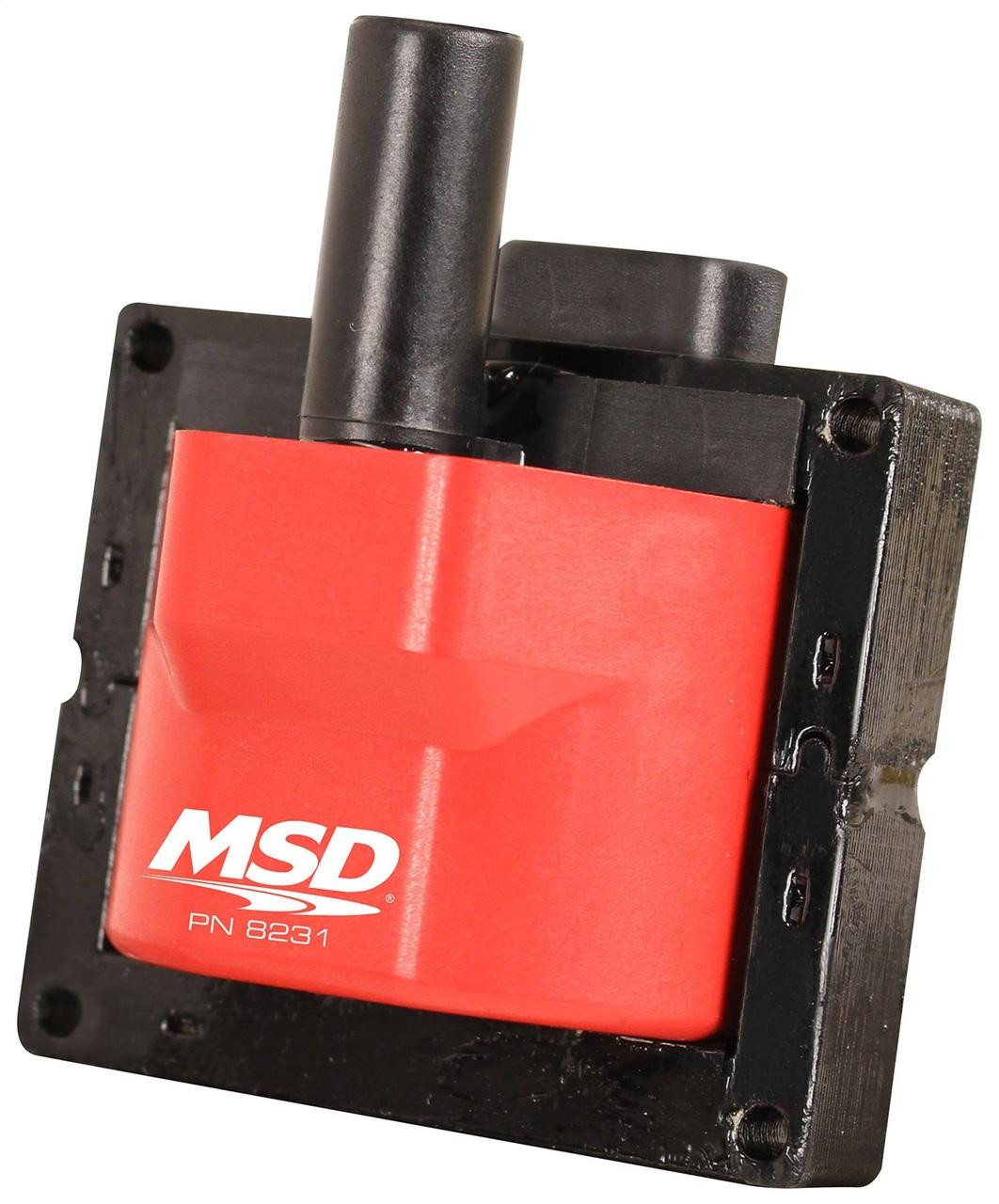

When it comes to late model performance parts, nothing beats bolt-on and direct connection components. These new bolt-in coils are designed with improved materials and windings to produce a stronger output. GM single connector coil PN 8231. Used on 1996 to 1999 General Motors vehicles. Installation tip: if you plan to install an MSD Ignition with this coil, use a PN 8877 harness for a direct plug-in installation.
Features & Benefits
- Direct performance replacement coil for GM 1996-1999
- 80:1 turns ratio
- Lower Primary Resistance Produces High Voltage Output
- Works w/Stock Ignition As Well As MSD Ignitions
- CARB E.O. Approved
Specifications:
Part Type: |
Ignition Coil |
Inductance: |
3.9 mH |
Maximum Voltage: |
40000 |
Primary Resistance: |
.500 ohms |
Secondary Resistance: |
6.5K ohms |
Turns Ratio: |
80:1 |
Peak Current: |
N/A |
Spark Duration: |
N/A |
