* This product is part of the HolleyDays Promotion, 10% has been taken off of the normal price and the promotion price is shown above. This price is valid until December 29th. *

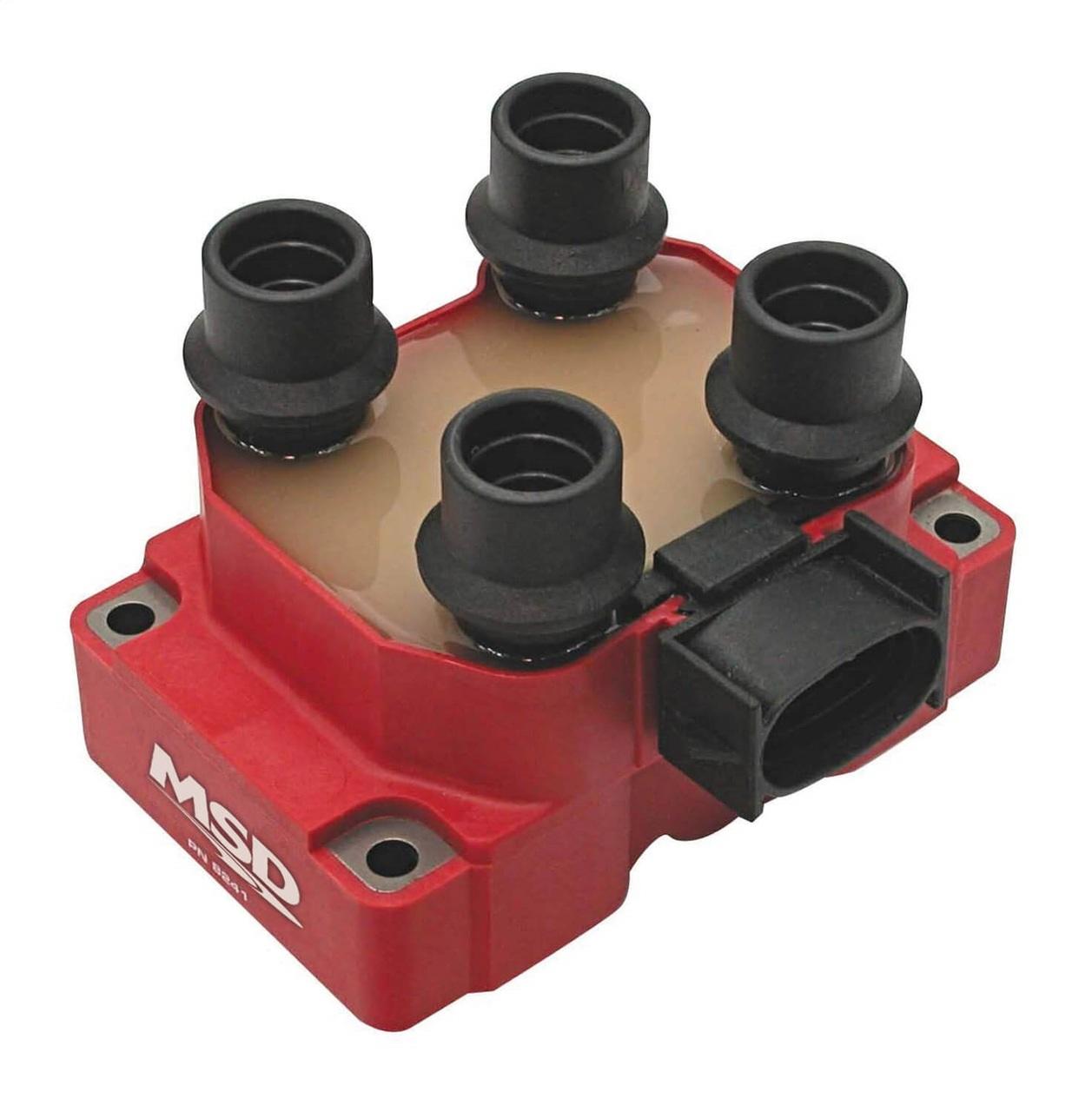

DescriptionFord DIS Coil Pack; 4-Tower; Bolt-On; 3.9 mH Inductance; 40000 Max Voltage; 0.53 ohms Primary/13.7k ohms Secondary Resistance; 83:1 Turns Ratio; Red;
Designed to be used with late model Ford waste spark ignition systems. 83:1 turns ratio and lower primary resistance produce high voltage output. Secondary towers designed for snap on spark plug terminals. Primary terminals require Ford style connector. Carb O.E. approved.
Features & Benefits
- Designed to use w/late model Ford waste spark ignition systems
- 83:1 turns ratio
- Lower Primary Resistance Produces High Voltage Output
- Secondary towers designed for snap on spark plug terminals
- Primary terminals require Ford style connector
- CARB E.O. Approved
Specifications:
Part Type: |
Ignition Coil |
Secondary Resistance: |
13.7K ohms |
Turns Ratio: |
83:1 |
Inductance: |
3.9 mH |
Maximum Voltage: |
40000 |
Primary Resistance: |
.530 ohms |
Peak Current: |
N/A |
Spark Duration: |
N/A |
