Holley Gen 3 Ultra Dominator SP Carburetor 1150 CFM, Mechanical Secondaries, Shiny - (HOL-0-80690)

* This product is part of the HolleyDays Promotion, 10% has been taken off of the normal price and the promotion price is shown above. This price is valid until December 29th. *

Description

Gen 3 Ultra Dominator® SP Carburetor; 4bbl; 1150cfm; 3 Circuit Metering; 1x4 Carb Set-Up; Model 4500; Mech. Secondary; No Choke; Gas; Dual Fuel Inlet; Shiny Finish;

Holley engineers have taken the state-of-the-art Gen 3 Ultra carburetors and created a budget friendly version that is perfect for street/strip applications as well as all out bracket or sportsman drag cars. The new Holley SP Dominator carburetors feature the patent pending Gen 3 mainbody which is 5/16" taller than the previous generation! This new height allowed for larger radius air entries to deliver smoother flow that equates to improved throttle response and consistency. An extended air cleaner flange is incorporated for easy air scoop attachment when using the available air scoop adapter. Other features include all aluminum construction, tunable billet metering blocks, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance! Holley engineers have taken the state-of-the-art Gen 3 Ultra carburetors and created a budget friendly version that is perfect for street/strip applications as well as all out bracket or sportsman drag cars. The new Holley SP Dominator carburetors feature the patent pending Gen 3 mainbody which is 5/16in. taller than the previous generation! This new height allowed for larger radius air entries to deliver smoother flow that equates to improved throttle response and consistency. An extended air cleaner Flange is incorporated for easy air scoop attachment when using the available air scoop adapter. Other features include all aluminum construction; tunable billet metering blocks; throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance!

Features & Benefits

• All Aluminum Construction Saves 3.8 lbs. Over Original Models
• 4 Corner Idle Allows You To Precisely Control Your Idle System
• Clear Sight Windows On Fuel Inlet Side For Fuel Level Adjustment
• Notched Float and Jet Extension Are Factory Installed
• 28% Weight Savings
• Shiny With Billet Aluminum Metering Block and Black Hardware
• Calibrations Optimized For Todays Race Engines and New Fuels
• Fully Machined From Venturi Throat To Throttle Bore For Perf

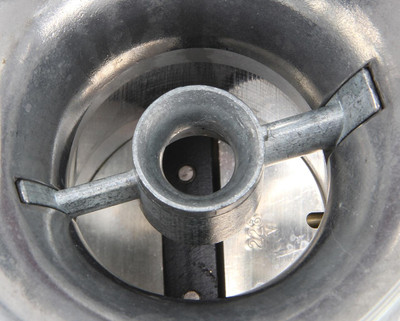

• Annular Booster Deliver Excellent Signal and Throttle Response
• Screw In Air Bleeds Offer Precise Tuning Capabilities
• Metering Blocks Feature Improved True Gasket Sealing
• Dual 50CC Accelerator Pumps Fuel From Idle To Full Throttle

Specifications:

Part Type:	Carburetor
Material:	Aluminum
Barrel:	Four
Carburetor Type:	4500
Choke:	None
Flange:	4500
Fuel Type:	Gasoline
Idle Air Bleed Size:	47
Primary Main Jet:	92
Secondary Main Jet:	102
Secondary Type:	Mechanical
Throttle Bore:	2.000 in.
Usage:	Racing
Billet Color:	Clear SP Dominator
CFM:	1150
Circuit:	3
Emission:	Without EGR
Finish:	Shiny
Fuel Inlet:	Dual
High Speed Air Bleed:	36
Intermediate Air Bleed:	59
Primary Power Valve:	5.5
Secondary Pump Nozzle Size:	37
Supercharged Application:	No
Type:	Automotive
Venturii Size:	1.690 in.
