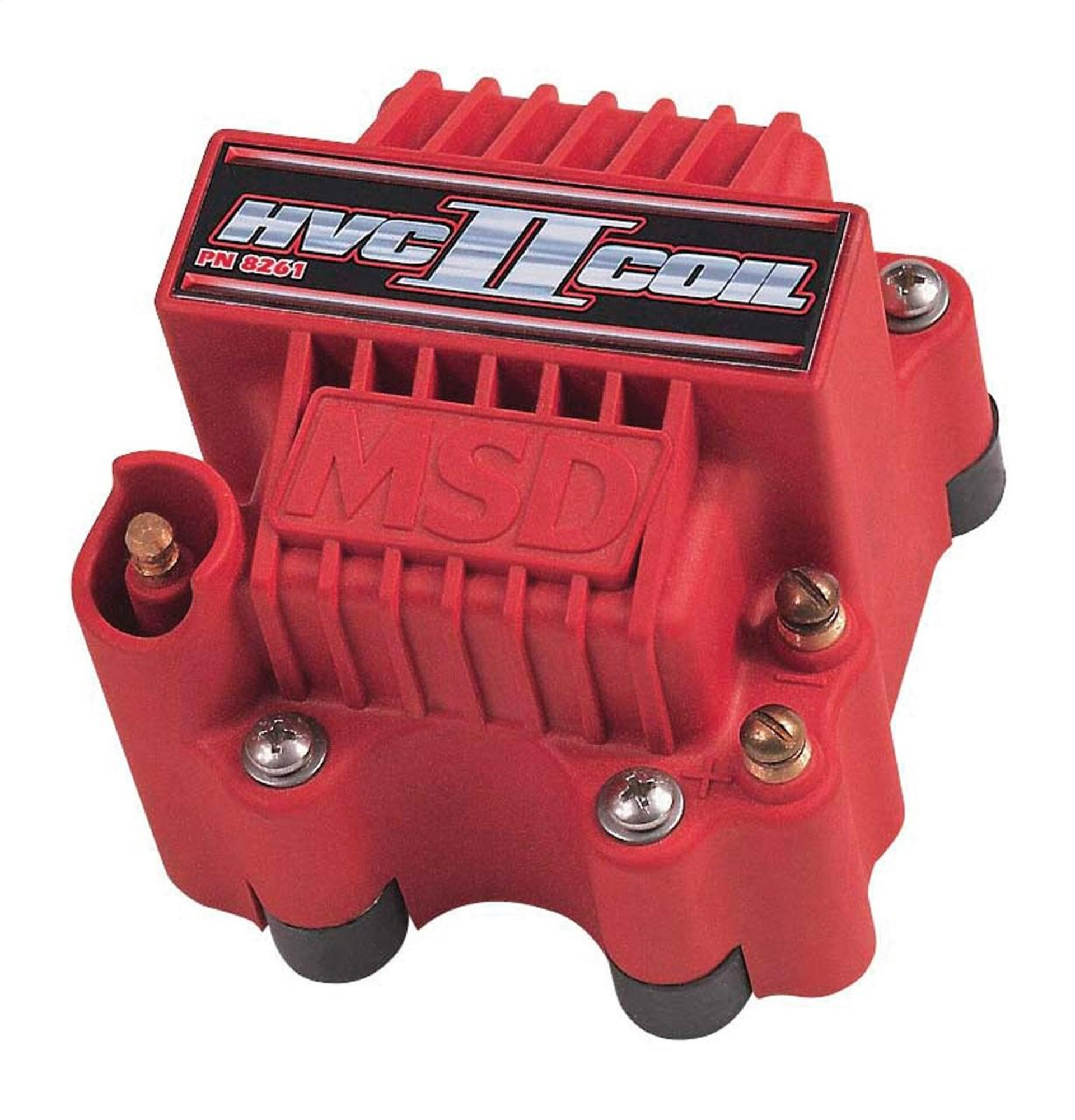

MSD HVC-2 Series Ignition Coil for 7/8 Series Ignition Control, Single, Red - (MSD-8261)

HVC-II Ignition Coil; Racing Coil For Use w/MSD 7 or 8 Series Ignition; 0.250 mH Inductance; 45000 Max Volts; 2 Amps Peak Current;150 uS Spark Duration; 70:1 Turns Ratio; Red;

The Pro Power HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and qual­ity. The coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from DuPont rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improv ed insulation and is also capable of enduring extreme volt­ages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also molded from rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 series ignitions.

Features & Benefits

• For racing applications w/MSD 7 or 8 Series Ignition Control
• New U-core winding design produces more voltage and current
• 70:1 Turns Ratio
• Lower Primary Resistance Produces High Voltage Output
• Windings encased in fracture resistant compound for vibration
• Rynite housing w/isolated tower and brass primary terminals
• Supplied w/Rubber Shock Mounts

Specifications:
