DescriptionHi-Ram Intake Manifold; Carbureted; 2 x 4150 [Sideways And Inline Mounting]; Front/Rear Height 11.08 in.; RPM Power Band 7000-8000; Satin Finish;

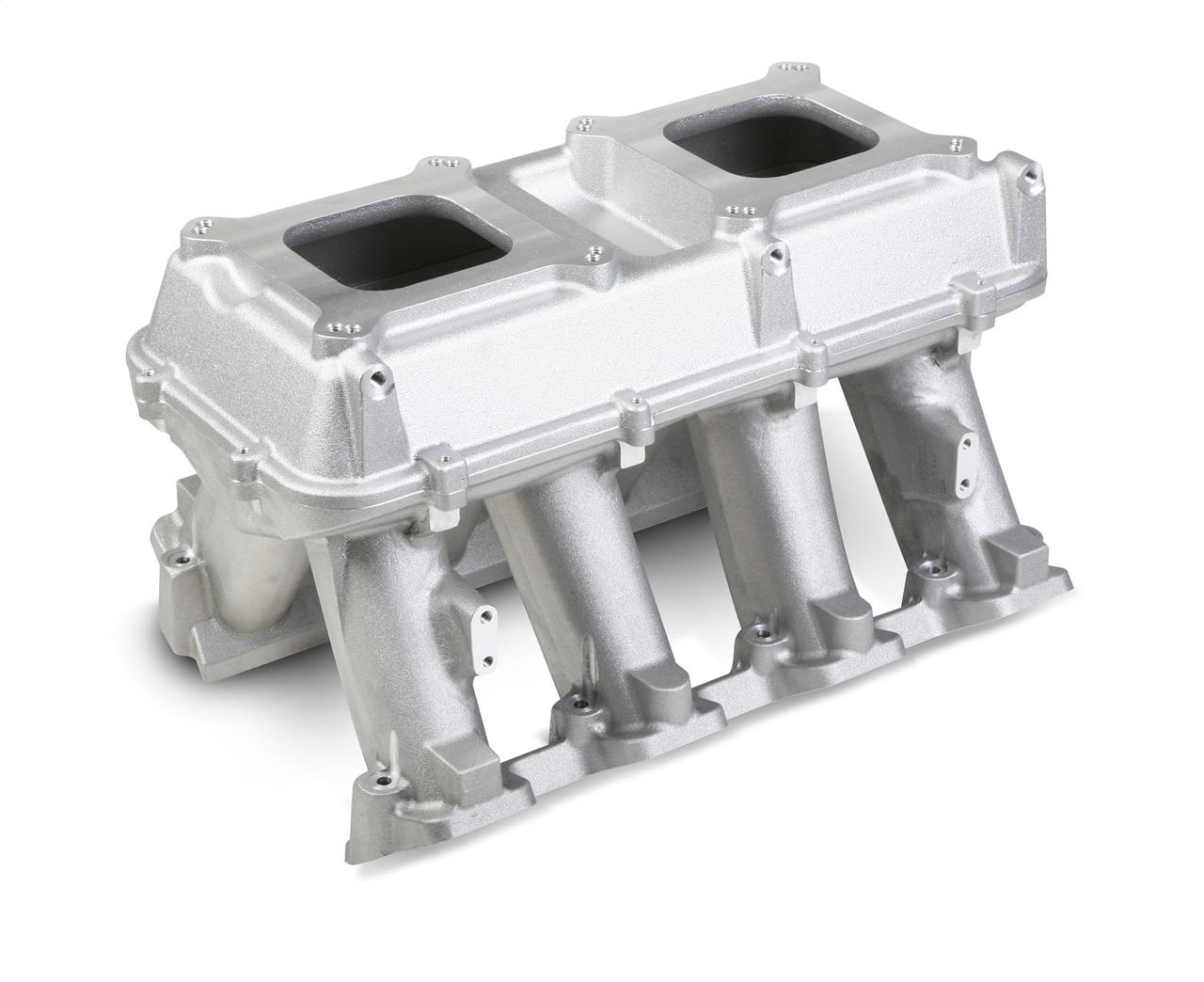

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sand rails, pulling trucks, track, street-rod applications and more! Carbureted Hi-Ram Intake; 2 x 4150 (sid
Features & Benefits
- Plenum Top Gasket Type 3/32in. Round O-Ring Cord
- Standard LS3 Molded O-Ring Mounting Flange Gasket
- Port Size 2.49 in. Height X 1.21 in. Wide
Specifications:
Part Type: |
Engine Intake Manifold |
Cylinder Head Type: |
Standard |
Emission: |
Without EGR |
Engine Make/Size: |
GM LS3/L92 |
Flange Type: |
4150 Square Bore |
Fuel System Type: |
Carb |
Manifold Type: |
Hi-Ram |
Usage: |
Street/Hi-Performance |
Construction: |
Cast |
Finish: |
Satin |
Front Height: |
11.080 in. |
Number Of Carbs: |
Two |
Position: |
Upper |
Rear Height: |
11.080 in. |
RPM Range: |
7000-8000 |
