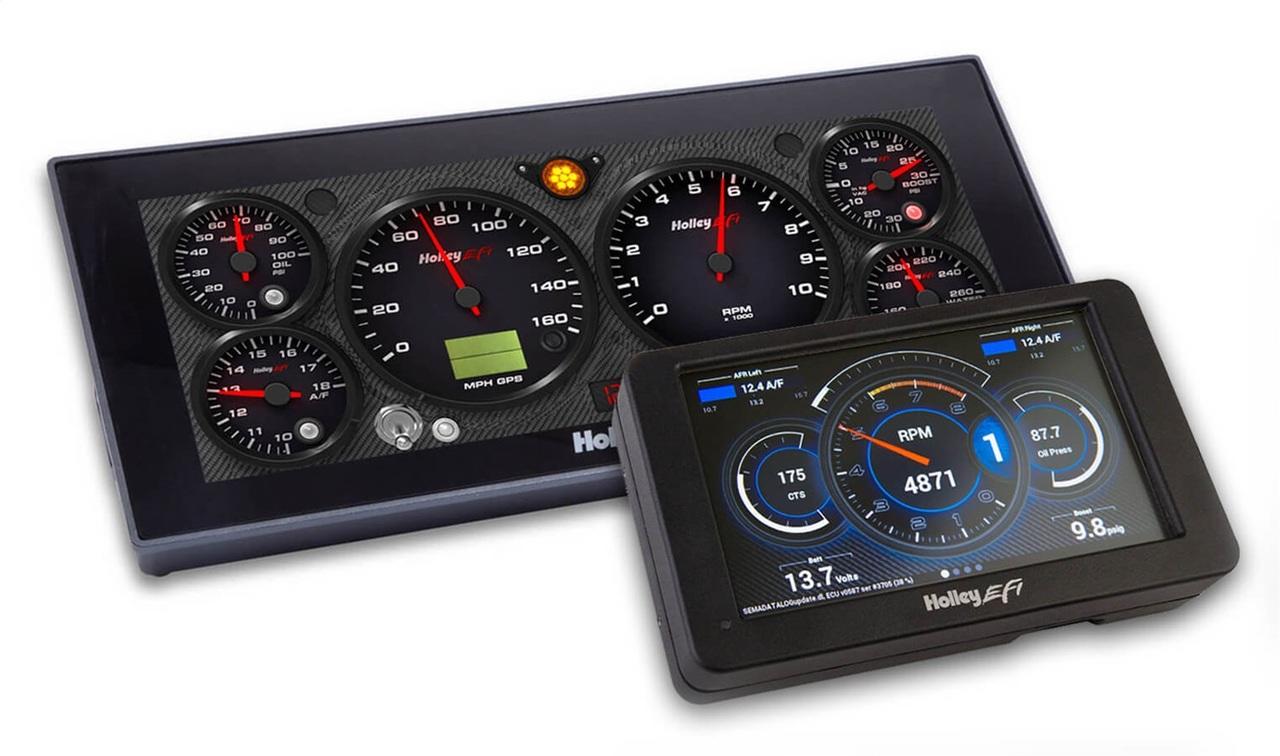

Holley EFI 12.3" Pro Dash, Touch Screen Programable Dash - (EFI-553-111)

Description

Holley EFI Pro Dash; 12.3 in. Viewing Area; Capacitive Touch Screen; 13.44 in. W x 5.81 in. T x 1.25 in D; Incl. 34 Pin Wiring Harness/Cables;

Trust. Whether it's your engine builder, team members or EFI System, trust is earned, not given. When your expensive engine, sponsorship and reputation are on the line, trust your engine monitoring to the Holley EFI 12.3" Pro Dash! The Holley EFI Pro Dash measures 13.44" wide, 5.81" tall and 1.25" deep. The Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 12.3" 1280x480 resolution low glare, high brightness, high contrast, full color capacitive touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather resistant aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! Holley EFI 12.3" Pro Dash includes everything needed for installation! The Holley EFI 12.3" Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump. *Includes everything needed for installation! USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts. Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections. Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs. User defined alarms for any input. Upgradable with future software enhancements. Viewing area is 12.3" on the diagonal

Features & Benefits

• Real-Time ECU Tuning Allows Quick Tune Changes Without Laptop
• No Stylus Required-Captive Touch Just Like Your Smart Phone
• User Definable Channel Alarms/Warnings
• 6x 1/4-28 Mounting Holes for Surface or Flush Mounting
• Capable Of Monitoring Up To 28 Real-Time Values
• 16 Default Background Skins Pre-Loaded w/Unlimited Options
• Quickly Swipe Between Multiple Active Screens
• Virtual Switch Panel Eliminates Need For External Toggle Switches
• Manual Or Auto-Brightness Features For Easy Viewing Day or Night
• Built In GPS w/Odometer Function
• On-Screen Datalog Playback Feature Allows Review Vital Run Info
• Expandable Storage Via USB

Specifications:
