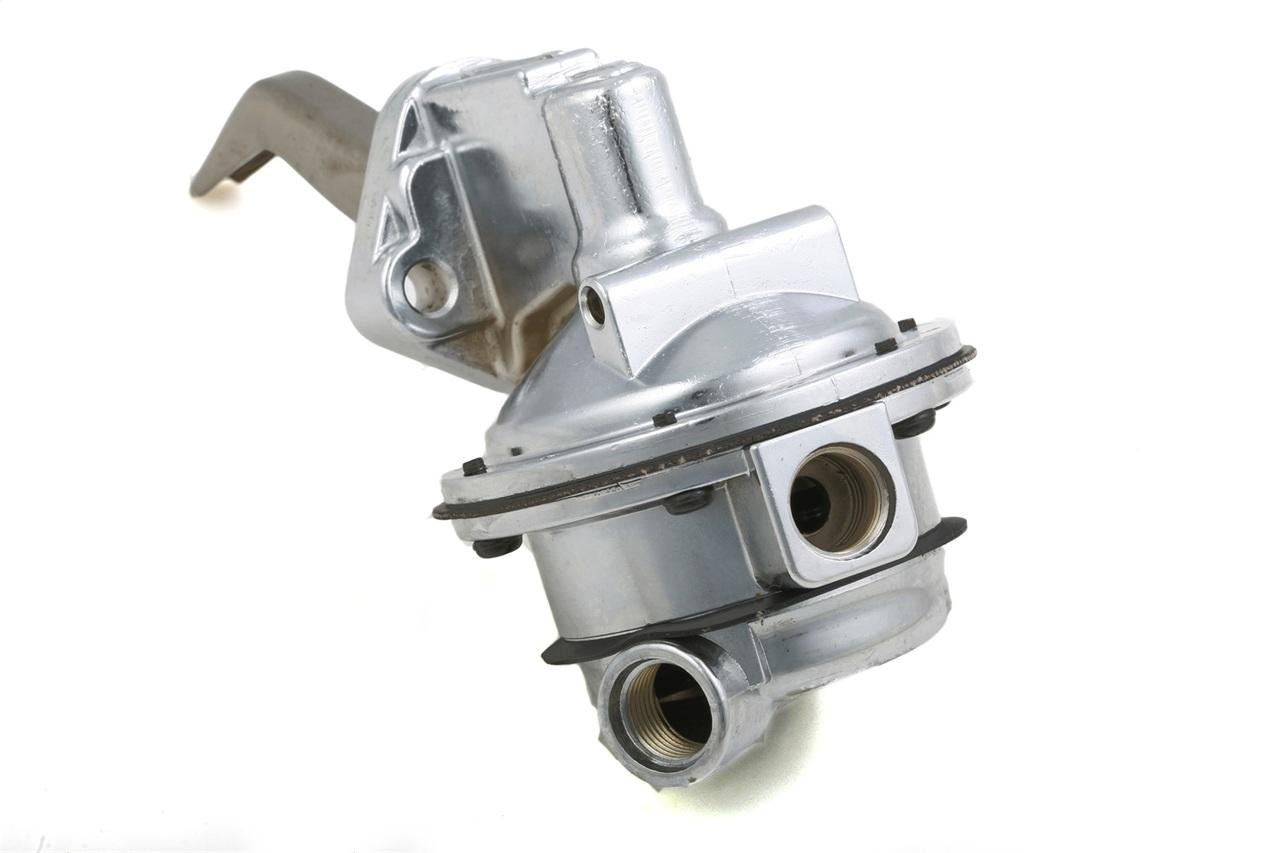

Holley Keith Dorton Series VoluMax Race Series Fuel Pump, 170GHP, Ford 289/302/351W V8s - (HOL-12-289-20)

Description

Keith Dorton Series VoluMax Race Series Fuel Pump; Free Flow GPH 170+; Free Flow LPH 644; Gasoline; 8 AN O-Ring - 3/4-16 SAE Inlet/Outlet; Silver;

Keith Dorton Series VoluMax race series fuel pump made from heavy duty construction for continuous high RPM operation. Redesigned high flow valves always ensure adequate fuel delivery. Fuel pressure regulator is required. Fuel body casting can be rotated to accommodate various plumbing situations. High output fuel flow, flows 170 gph free flow. Shutoff pressure pre-set at 8 PSI, 3/4-inch-16 inlet and outlet ports. Fittings not included. Holley mechanical fuel pumps range from 80 GPH to 225 GPH in many various applications to meet the fuel demands of most engines. Whether you are looking for a street performance or an all out race mechanical fuel pump; Holley has the pump you need.

Features & Benefits

• High Output Fuel Flow
• Flows 170+ gph Free Flow
• Shutoff Pressure Pre-Set At 8 PSI
• Fuel Pressure Regulator Is Not Required
• Heavy Duty Construction For Continuous High rpm Operation
• Redesigned High Flow Valves Always Ensure Adequate Fuel Delivery
• Fuel Body Casting Can Be Rotated For Plumbing Situations
• Inlet And Outlet Tapped For 3/8 in. NPT
• Fittings Not Included

Specifications:

Part Type:	Mechanical Fuel Pump
Material:	Aluminum
Free Flow GPH:	170
Fully Open:	644
Outlet Size:	8AN O-Ring - 0.750 in. - 16 SAE
Color:	Silver
Fuel Type:	Gasoline
Inlet Size:	8AN O-Ring - .75 -16 SAE
