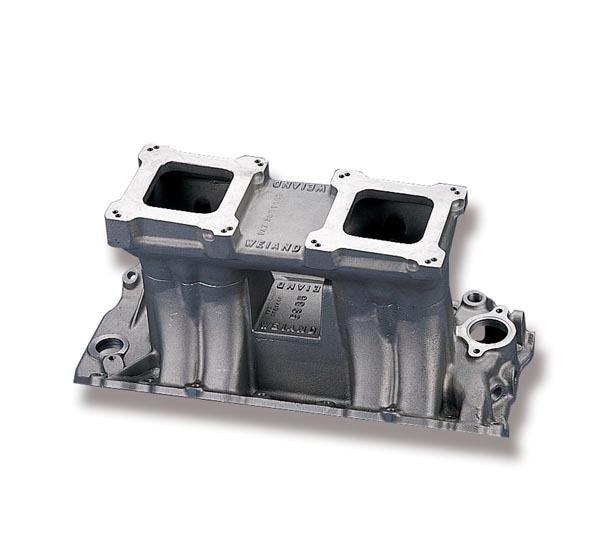

Weiand Big Block Chevy Intake Manifold Hi-Ram 2x4 Sq Bore 2800-8000 RPM Rectangle Port - (1985WND-WEI)

* This product is part of the HolleyDays Promotion, 10% has been taken off of the normal price and the promotion price is shown above. This price is valid until December 29th. *

Description

Nostalgic Series Hi-Ram Intake Manifold; Power Band 2800-8000 RPM; w/Perf. Rectangular Port Heads; Square Flange Carb Mounting; 10.12in. Front/10.93in. Rear Height; Satin Finish;

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vacuum operated secondary's, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation. Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit.

Features & Benefits

• 2 x 4 Carburetor Top
• Square Flange Carburetor Mounting
• 2500-7800 RPM Power Band
• Special D-Shaped Port Runner Design
• Large Volume Plenum
• Height Front 10.12 in.; Rear 10.93 in.
• Port Size 2.34 in. Height x 1.55 in. Width
• Carb Flange Center-To-Center 9 11/16 in.

Specifications:

Construction:	Cast
Cylinder Head Type:	Standard
Emission:	Without EGR
Engine Make/Size:	Chevy Big Block V8
Finish:	Satin
Front Height:	10.120 in.
Fuel System Type:	Carb
Manifold Type:	Hi-Ram
Number Of Carbs:	One
Part Type:	Engine Intake Manifold
Position:	Upper
Rear Height:	10.930 in.
RPM Range:	2800-8000
Usage:	Racing
