DescriptionPrerunner/Trail Series Transmission; 4L60E; Fits w/GM LS 2WD w/Manual Valve; Max 550 HP/450 ft./lbs. Torque; w/o Speedometer Driven Gear/Housing;

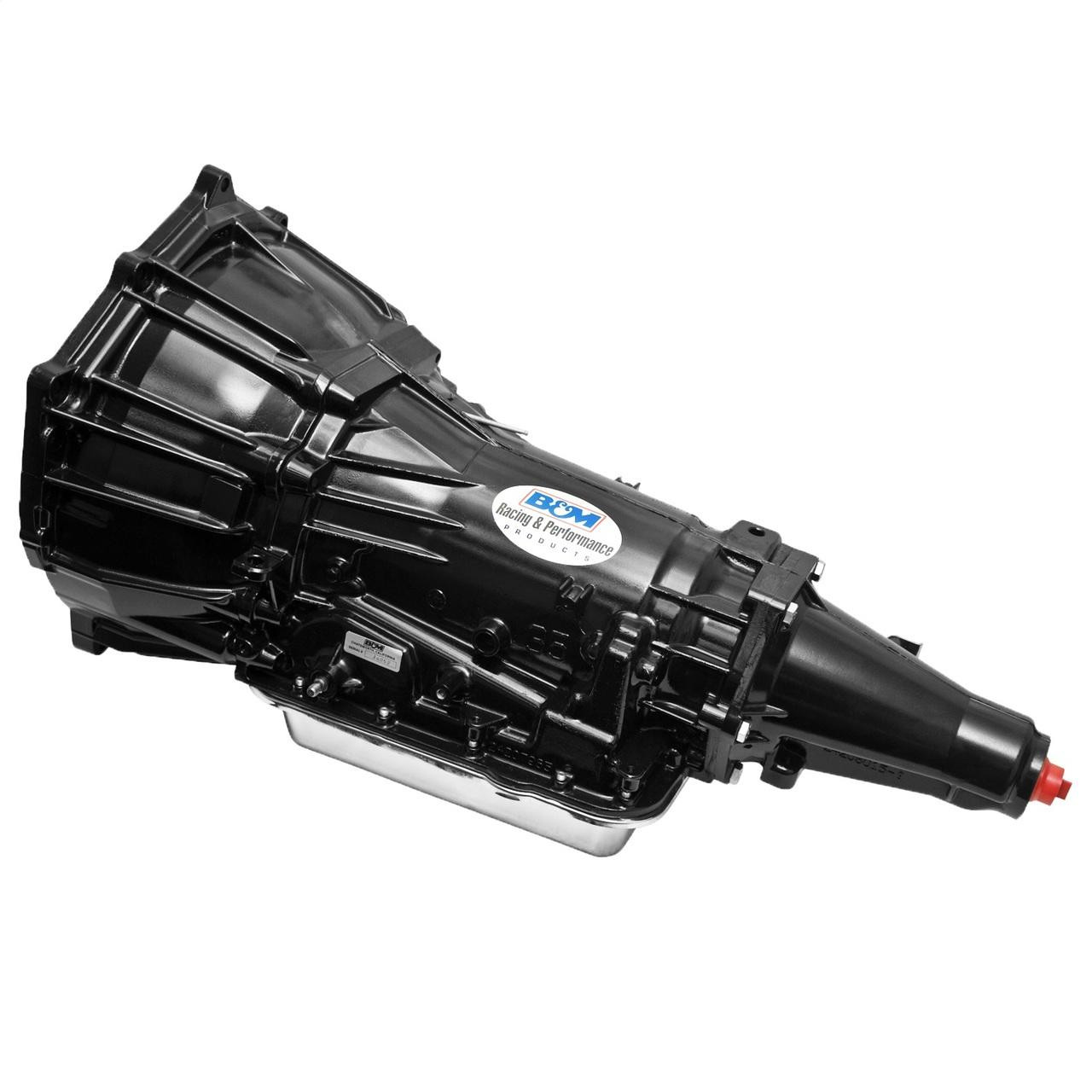

The B& M GM 4L60E PreRunner/Trail automatic transmission is for use with Chevrolet LS based engines. This transmission features a manual/forward valve body. The transmission includes a deep, cast aluminum pan. Internal components include a beast sunshell, reinforced input drum, "Billet" Corvette 4th gear servo, all new solenoids & wiring harness, 29 element dual cage sprag, all new high performance friction plates, and 8 Count 3-4 Friction Pack with Koleen steels. Max 550 HP / 450 Ft/Lbs. Intended for off road/trail use. Fits 1998-2006 GM 4L60E (electronic shift model) 2 wheel drive. For use on LS type engines. Does not replace 4L60 (manual shift model). Transmission shipped without speedometer driven gear or housing.
Features & Benefits
- Deep Aluminum Pan
- Intended For Off Road Use
Specifications:
| Part Type: |
Automatic Transmission Assembly |
| Dipstick Included: |
No |
| Friction Plate: |
New |
| Intermediate and Low Roller Clutches: |
New |
| Torque Capacity: |
450 ft/lbs. |
| Trans Model: |
GM- 4L60E (Auto) 4 Speed |
| Transmission Pan Finish: |
Natural |
| Transmission Pan Type: |
Deep Cast |
| Valve Body Configuration: |
Recalibrated |
| Valve Body Type: |
Manual |
| Cooler Included: |
No |
| Drive Type: |
RWD |
| Horsepower Rating: |
550 |
| Package Contents: |
Transmission |
| Torque Converter Included: |
No |
| Transmission Model: |
4L60E |
| Transmission Pan Material: |
Aluminum |
| Transmission Series: |
Prerunner/Trail |
| Valve Body Pattern: |
Forward |
| Disclaimer: |
This item requires LTL shipping and it's important to inspect the shipment upon delivery. If damage is present, you can refuse delivery or have the driver note the related damage. |
Warranty:
Manufacturer's Limited 90 Day Warranty
