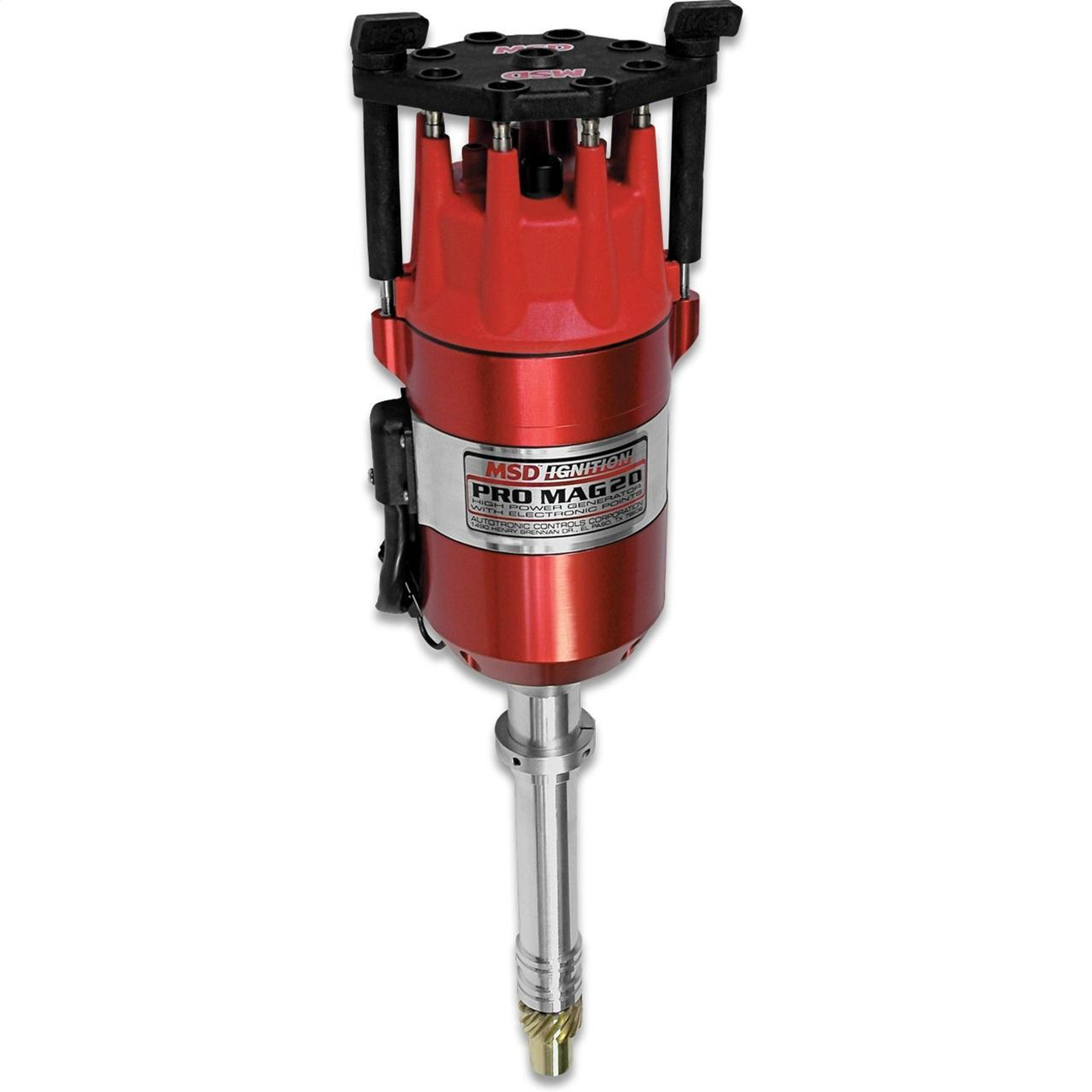

DescriptionPro Mag Generator; Chevy V8; Tall; 20 amp;
The increased out put of the 20 Amp pro-mag was born of racers being racers; always asking for more power. This stemmed from drag racers that were using a 12 Amp system, but just didn't require a 44 Amp system. The engineers at MSD found that with a few changes to the internals of the generator it would deliver the increased current through the same electronic points box, PN 8106. The 20 Am p magneto is a favorite in alcohol slurping engines such sportsman drafters and quick-8 racers. There are three different generators available; a band clamp design in both CW and CCW rotation, plus a model built on a Chevy distributor base. All three require the PN 8106 electronic points box. The band clamp versions are equipped with a large Ford style cap while the Chevy version uses a 4 In. cap and both are topped with heavy duty retainers.
Features & Benefits
- Incl. Cap/Rotor/Wire Retainer/Bronze Gear/Billet Hold Down Clamp
- Adj. Slip Collar Mounting Flange For Engines w/Modified Decks
Specifications:
Part Type: |
Generator |
Primary Current: |
20 Amp |
Secondary Current: |
300 Milliamp |
Spark Duration: |
26 Degree Crankshaft Rotation |
RPM: |
14000 |
Secondary Voltage: |
40000 |
Spark Energy: |
240 mJ per spark |
