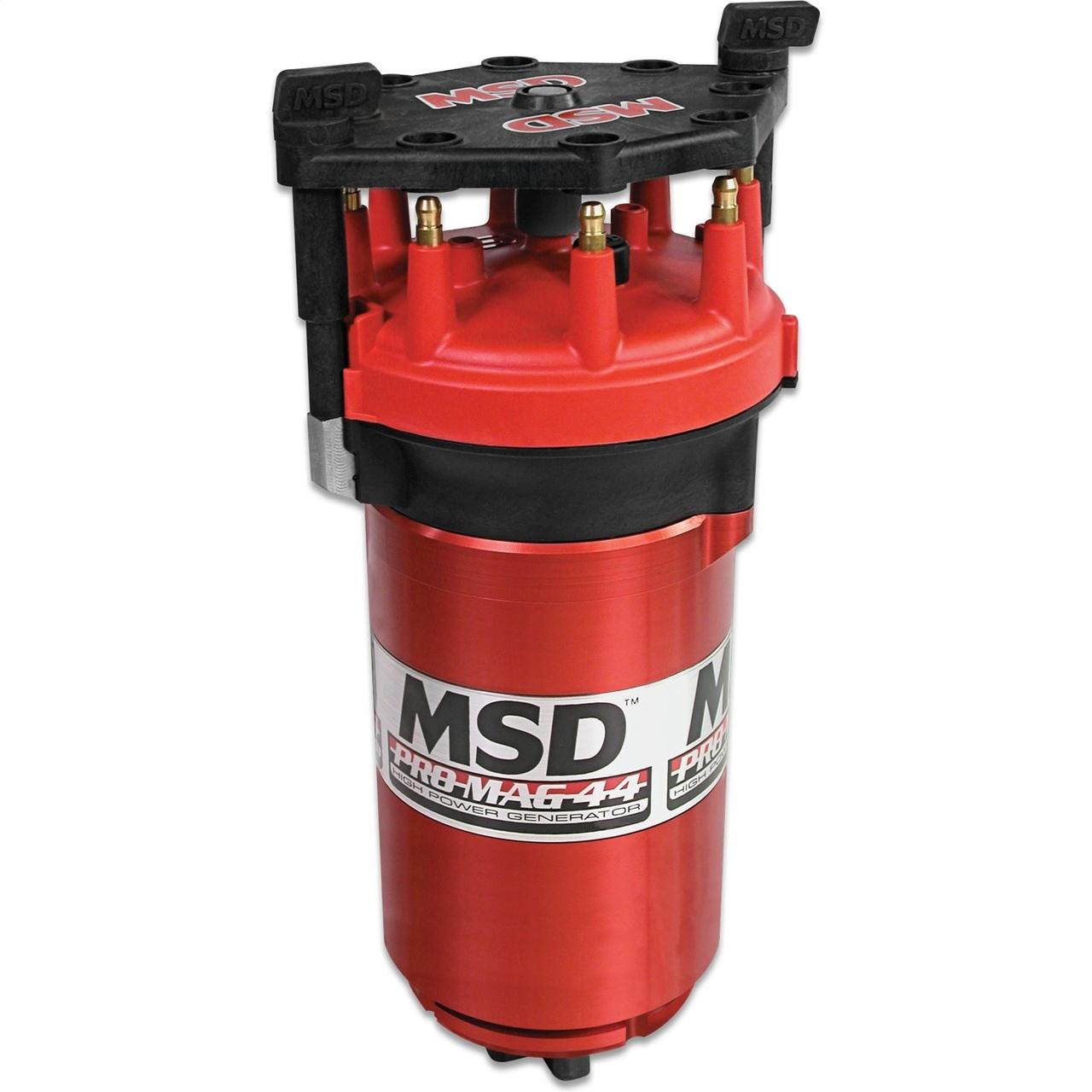

DescriptionPro Mag Generator; 44 Amp; Counter Clockwise Rotation; Standard Red Cap; Band Clamp;
The increased out put of the 20 Amp pro-mag was born of racers being racers; always asking for more power. This stemmed from drag racers that were using a 12 Amp system, but just didn't require a 44 Amp system. The engineers at MSD found that with a few changes to the internals of the generator it would deliver the increased current through the same electronic points box, PN 8106. The 20 Amp magneto is a favorite in alcohol slurping engines such sportsman drafters and quick-8 racers. There are three different generators available; a band clamp design in both CW and CCW rotation, plus a model built on a Chevy distributor base. All three require the PN 8106 electronic points box. The band clamp versions are equipped with a large Ford style cap while the Chevy version uses a 4 In. cap and both are topped with heavy duty retainers.
Features & Benefits
- Clockwise Rotation
- Utilizes Cross Drive Pro Cap/Rotor/Wire Retainer
- Timing Retard Control
Specifications:
Part Type: |
Generator |
RPM: |
12000 |
Primary Current: |
44 Amp |
Spark Energy: |
800 mJ per spark |
