Holley EFI Sniper EFI Fuel Tank System 255LPH Pump 63-66 Chevy Truck Under Bed Mount - (EFI-19-184)

* This product is part of the HolleyDays Promotion, 10% has been taken off of the normal price and the promotion price is shown above. This price is valid until December 29th. *

Description

Sniper EFI Fuel Tank System; Fits w/1963-66 GM Trucks w/LT or LS Swap; 18 Gal.; 255 LPH; Silver Powdercoated Finish; Incl. Tank/Fuel Pump/Fuel Lever Sender; Mounts Under Bed Tank;

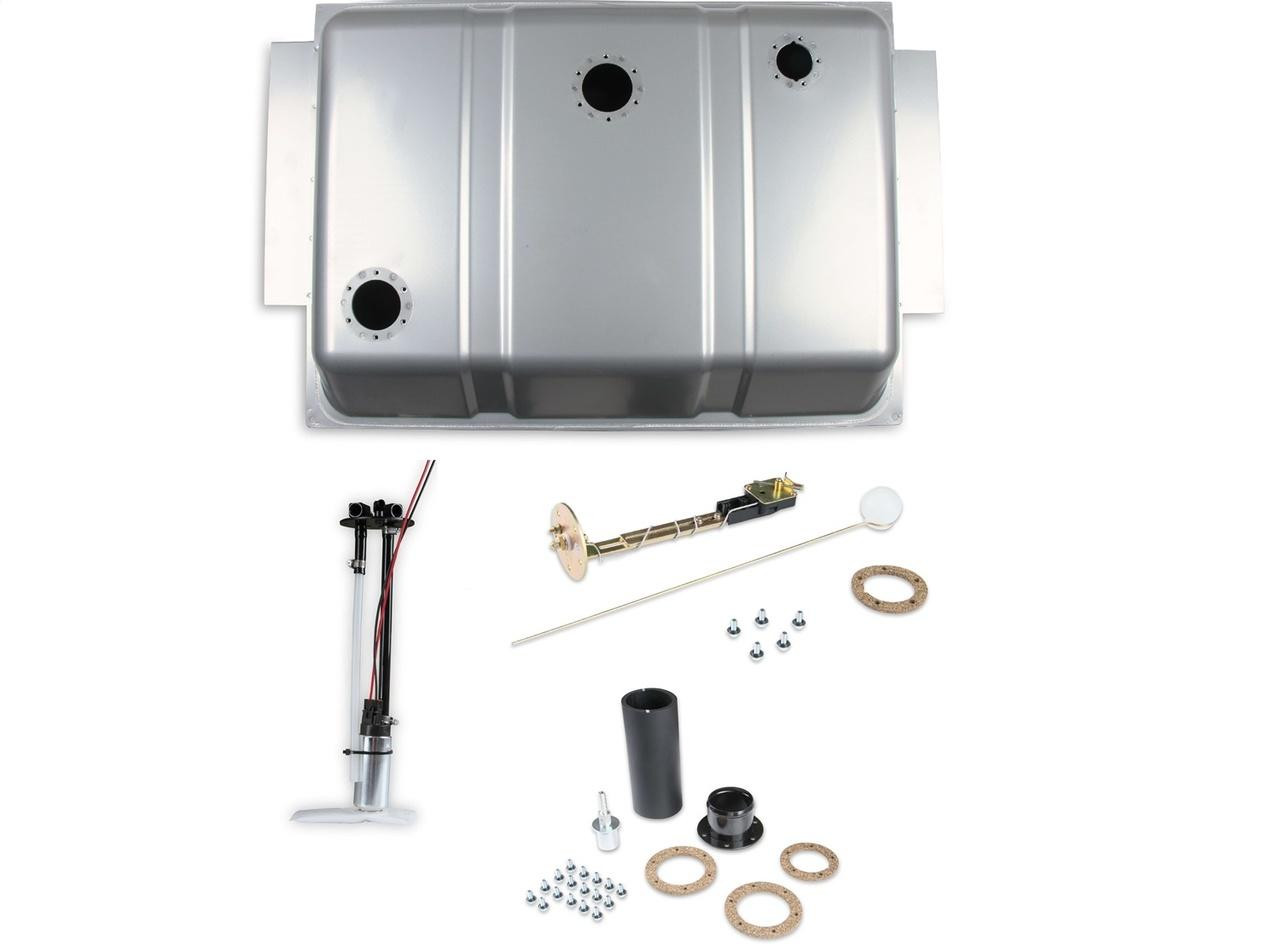

The 19-184 fuel system kit is for the 1963-66 Chevy/GMC trucks and the 19-185 is designed for the 1967-72 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included. The fuel filler neck will go up through the bed floor. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. 18-gallon capacity Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange) Size is 28" x 20-1/2" x 9-3/4" (measured without the mounting flange)

Features & Benefits

• Tanks Are Galvanized Steel For Total Corrosion Protection
• 255 Lph Fuel Pump With Hanger Assembly
• Fuel Level Sender Included With The Correct Ohm Range
• Fuel Pump And Sender Are Recessed To Provide An Easy Installation
• Mounts Under The Truck Bed Using The Flanges To Bolt In Place
• Designed To Bolt Up To The Bottom Side Of The Frame Rails
• Can Be Mounted In Different Configurations
• It Is Up To The Installer To Drill And Locate The Mounting Holes
• Mounting Hardware Is Not Included

Specifications:

Part Type:	Fuel Tank and Pump Assembly Combination
