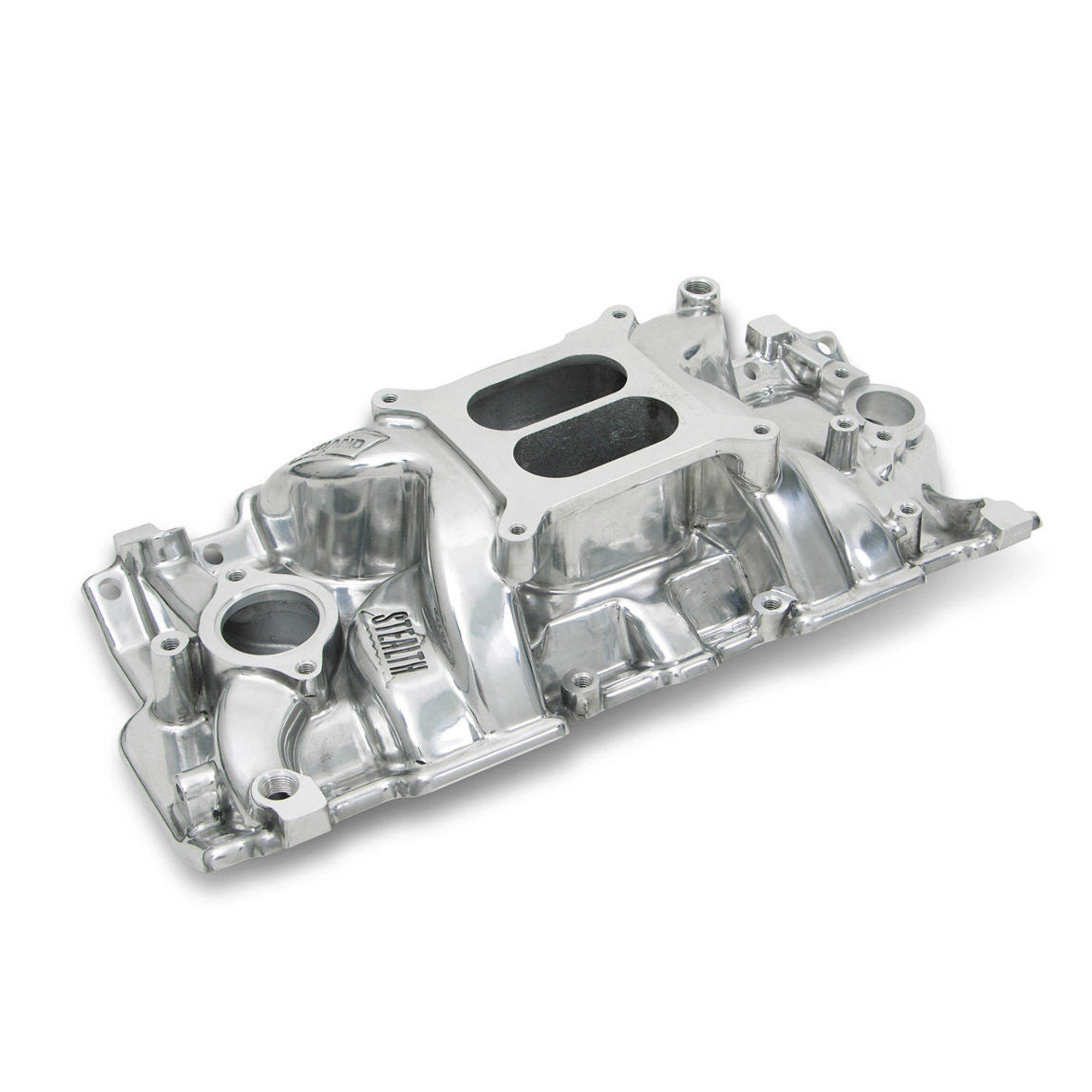

DescriptionSpeed Warrior Intake Manifold; Power Band 1500-6700 RPM; High Rise; w/Cast Iron Cylinder Heads; Square Bore Carb Flange; 4.19in. Front H/5.27in. Rear Height; Non-EGR; Polished;
The Weiand Street Warrior is designed for use on stock or stroker combinations that feature efficient cylinder heads. The latest advances in cam design necessitated the design of a new intake manifold, and the Weiand Street Warrior manifolds fill that void. They are designed with computational fluid dynamics (CFD) software for optimized and consistent flow on every single manifold. *** Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G.
Features & Benefits
- Permanent Mold Casting
- Precision CNC Machining
- High Rise/Dual Plane Design
- Square Bore Carburetor Flange
- 1500-6700 RPM Power Band
- Port Size 1.92 in. Height x 1.16 in. Width
- Exhst Crossover For Improved Street Drivability (Std. SBC Heads)
Specifications:
Part Type: |
Engine Intake Manifold |
Cylinder Head Type: |
Square Bore |
Emission: |
Without EGR |
Engine Make/Size: |
Chevy Small Block V8 |
Number Of Carbs: |
One |
Position: |
Upper |
Usage: |
Racing |
RPM Range: |
1500-6700 |
Part Number Superseded To: |
8170WNDP |
