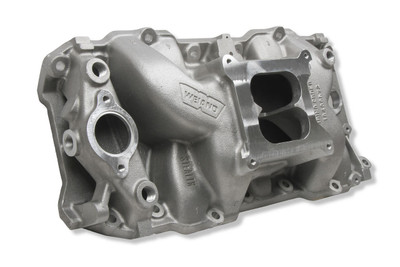

DescriptionStealth Intake Manifold; Power Band Idle-6800 RPM; Low Rise; w/460 V8 Std. Heads; Square Carb Mounting Flange; 5.25in. Frt H/6.75in. Rear Height; No EGR Provisions; Satin Finish;
Weiand is no stranger to the performance aftermarket. Since the 1930s, Weiand has been delivering serious performance parts to street /strip enthusiasts, marine customers and hard core racers. Times have changed as bigger motors, higher RPMs, better ignition systems and ultra efficient cylinder head designs have generated a need for better manifold technology. Weiand has delivered!
Features & Benefits
- Port Size 2.15 in. Height x 1.89 in. Width
- High Rise/Dual Plane Design
- Height Front 5.25 in.; Rear 6.75 in.
- Idle-6800 RPM Power Band
- No EGR Provisions
- Square Carburetor Mounting Flange
Specifications:
| Part Type: |
Engine Intake Manifold |
| Barrel: |
Four |
| Cylinder Head Type: |
Standard |
| Emission: |
Without EGR |
| Engine Make/Size: |
Ford Big Block V8 |
| Front Height: |
5.250 in. |
| Number Of Carbs: |
One |
| Usage: |
Street/Strip |
| Construction: |
Cast |
| Finish: |
Satin |
| Fuel System Type: |
Carb |
| Manifold Type: |
Low Rise |
| Position: |
Lower |
| Rear Height: |
6.750 in. |
| RPM Range: |
Idle-6800 |
Warranty:
Manufacturer's Limited 90 Day Warranty
