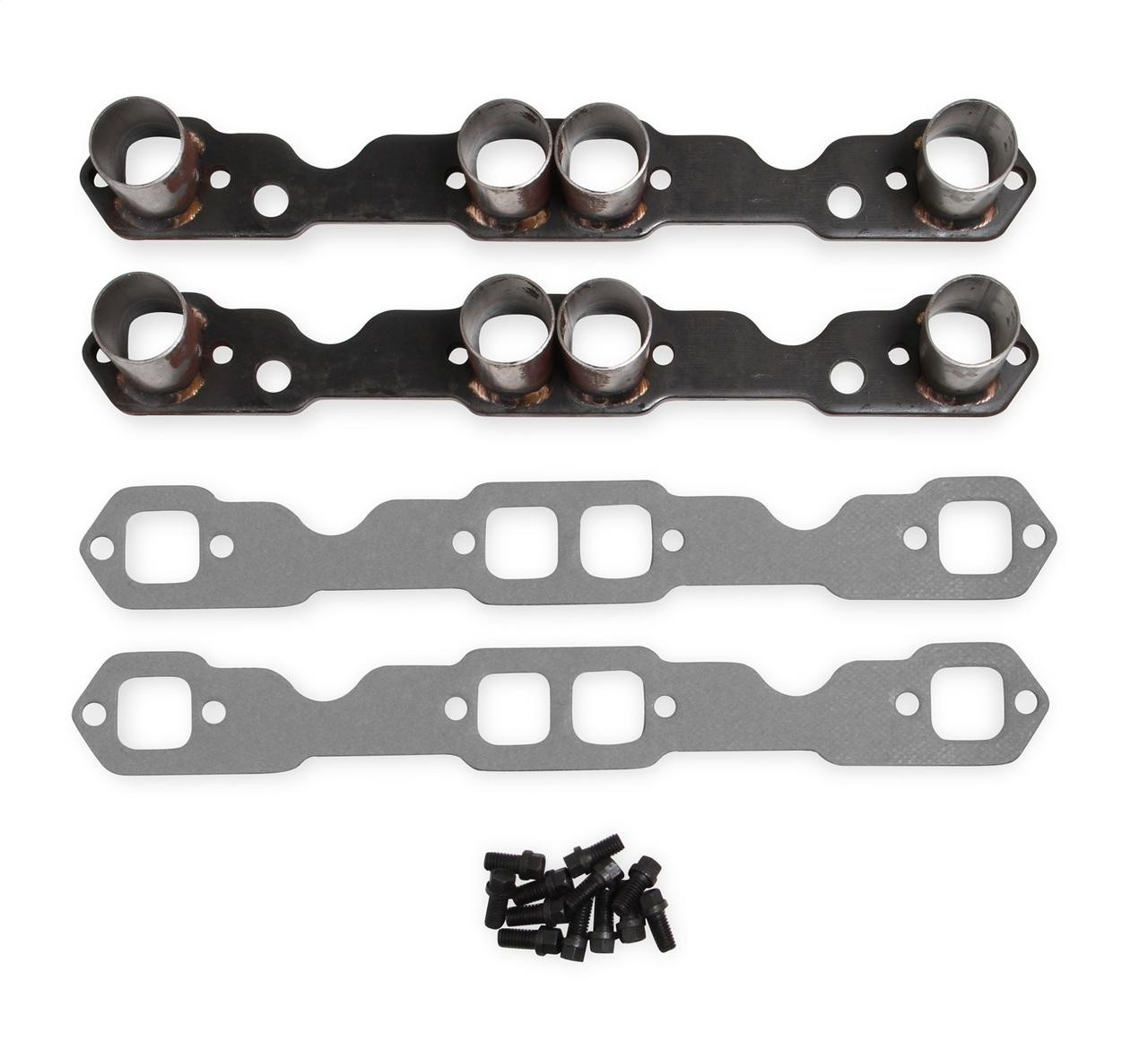

DescriptionSuper Competition Flange Kit w/Stubs; Chevy 262-400 Eng.; w/Welded Stubs; Primary Tube Size 1.75 in. OD; Port Shape Square;
Hooker offers a complete line of fully welded flange kits with stubs. We have taken the most difficult and time consuming part of building a custom header and done it for you. Each flange has a 2 inch long stub welded to it and is machine milled, not ground, to provide a perfect sealing surface. The flange is then internally deburred and helibrazed on the outside to provide maximum strength. Flange kits come with gaskets, bolts and polished stainless steel NHRA contingency I.D. header tags.
Features & Benefits
- SS NHRA Contingency ID Header Tag
- Includes Gaskets And Bolts
Specifications:
Material: |
Mild Steel |
Thickness: |
0.375 in. |
Part Type: |
Exhaust Flange |
Engine Make/Size: |
Chevy Small Block (262-400) |
Finish: |
Raw |
Matching Tube Size: |
1.750 in. |
Port Size: |
1.750 in. D Port |
Product Width: |
OEM |
Engine Type: |
Small Block Chevy |
Primary Tube Diameter: |
1.625 in. |
Bolt Circle Diameter: |
N/A |
